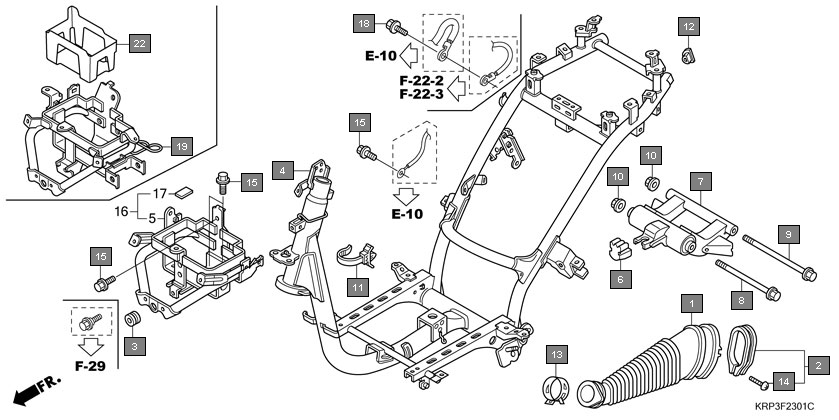

Scooters Aviator SCV100G8 Frame Frame body(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 11345KVT900 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 33715965000 RUBBER, TAILLIGHT MOUNTING 1
4 50100KVT900 BODY COMP., FRAME 1
5 50330KVT910 TRAY COMP., BATTERY 1
6 50330KVT900 TRAY COMP., BATTERY 1
7 50352GW0730 RUBBER, LINK STOPPER 1
8 50355KVT900 LINK SUB ASSY., ENGINE HANGER 1
9 90105KJ9000 BOLT, FLANGE, 10X210 1
10 90106GCC000 BOLT, FLANGE, 10X238 1
11 90304KCS920 NUT, U, 10MM 2
12 90672KPL901 CLIP, BODY 2
13 90862KVT900 PLUG, FRAME END 1
14 91405KPL900 CLAMP, TUBE(D29) 1
15 93500040250G SCREW, PAN, 4X25 1
16 957010601208 BOLT, FLANGE, 6X12 4
