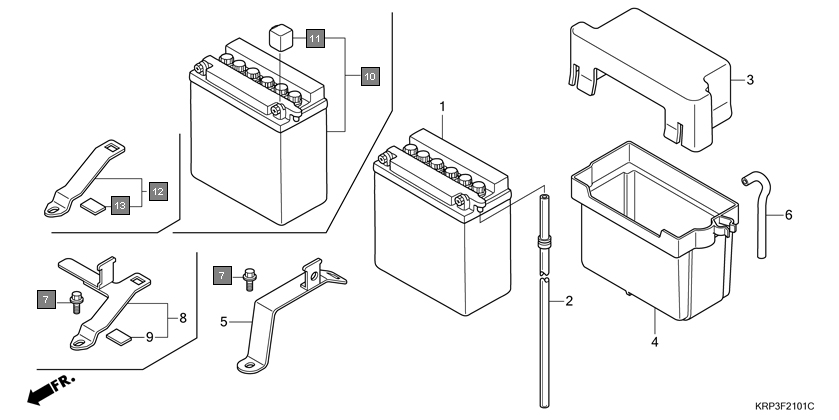

Scooters Aviator SCV100G8 Frame Battery(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 31500KRP901 BATTERY(12MX5L-B) 1
2 31500KRP902 BATTERY(AB5L-B) 1
3 31502KVT900 TUBE, BATTERY BREATHER 1
4 50325KTP900 BOX UPPER, BATTERY 1
5 50326KTP900 BOX LOWER, BATTERY 1
6 50341KVT900 BAND COMP., BATTERY 1
7 950031205210 TUBE, VINYL, 5X7X520 (95003-12001-10M) 1
8 957010601208 BOLT, FLANGE, 6X12 1
