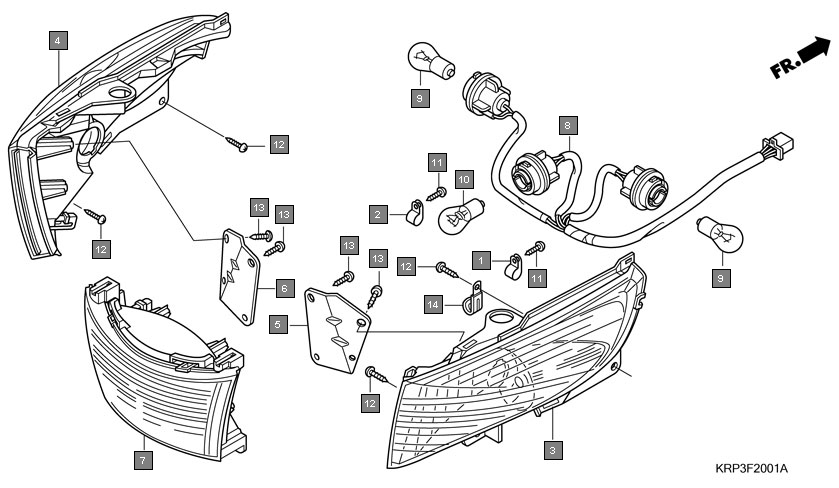

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 32920KVT901 | CLIP A, HARNESS | 1 |
2 | 32930KVT901 | CLIP B, HARNESS | 1 |
3 | 33610KVT901 | WINKER UNIT, R. RR. | 1 |
4 | 33660KVT901 | WINKER UNIT, L. RR. | 1 |
5 | 33706KVT900 | STAY, R. RR. COMBINATION LIGHT | 1 |
6 | 33707KVT900 | STAY, L. RR. COMBINATION LIGHT | 1 |
7 | 33710KVT901 | TAILLIGHT UNIT | 1 |
8 | 33715KVT901 | SOCKET COMP. | 1 |
9 | 34904KTE910 | BULB, WINKER(AMBER)(12V 21W) | 2 |
10 | 34906KRB900 | BULB, TAILLIGHT(12V 21/5W) | 1 |
11 | 9390134420 | SCREW, TAPPING, 4X16 | 2 |
12 | 9390334420 | SCREW, TAPPING, 4X16 | 4 |
13 | 9390335320 | SCREW, TAPPING, 5X16 | 8 |
14 | 9459127000 | CLIP, 2X70 | 1 |
