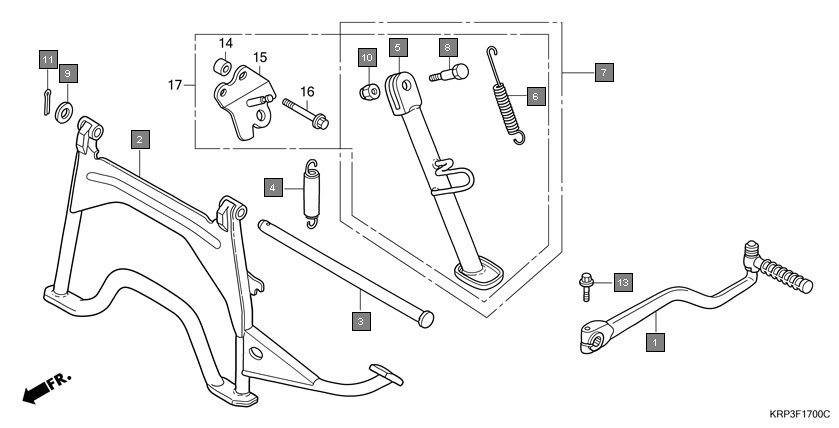

Scooters Aviator SCV100G8 Frame Kick starter arm/stand
Ref.No. Part No. Description Oty
1 28300KVT900 ARM ASSY., KICK STARTER 1
2 50500KVT900 STAND COMP., MAIN 1
3 50503GCC000 SHAFT, MAIN STAND 1
4 50505GCC000 SPRING ASSY., MAIN STAND 1
5 50530KVT900 BAR COMP., SIDE STAND 1
6 50536KPL900 SPRING, SIDE STAND 1
7 90109KPL900 BOLT, SIDE STAND PIVOT 1
8 9410212000 WASHER, PLAIN, 12MM 1
9 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
10 9420125250 PIN, SPLIT, 2.5X25 1
11 957010802507 BOLT, FLANGE, 8X25 1
