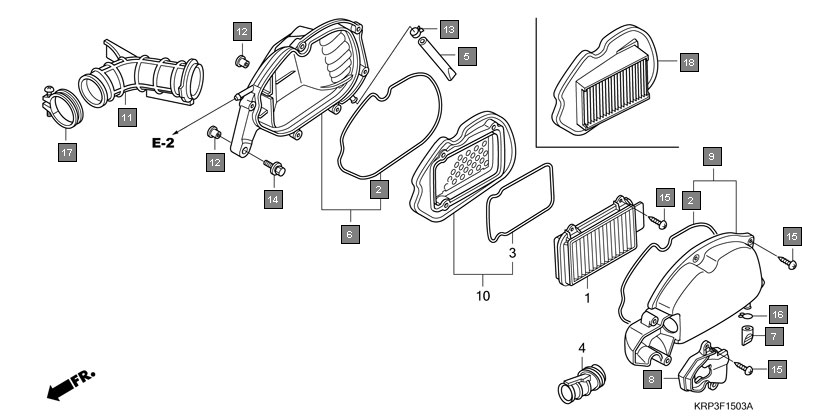

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17210KVT900 | ELEMENT, AIR CLEANER | 1 |
| 2 | 17212GEE000 | SEAL, AIR CLEANER COVER | 2 |
| 3 | 17213KTP900 | SEAL, AIR CLEANER ELEMENT | 1 |
| 4 | 17215KRP980 | DUCT, AIR CLEANER | 1 |
| 5 | 17216KTP900 | TUBE, DRAIN | 1 |
| 6 | 17225KVT900 | CASE SUB ASSY., AIR CLEANER | 1 |
| 7 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
| 8 | 17234KVT900 | COVER, AIR CLEANER DUCT | 1 |
| 9 | 17235KVT900 | COVER SUB ASSY., AIR CLEANER | 1 |
| 10 | 17245KVT900 | HOLDER SUB ASSY., AIR CLEANER | 1 |
| 11 | 17253KTP900 | TUBE, AIR CLEANER CONNECTING | 1 |
| 12 | 50731KV3770 | COLLAR, PILLION STEP SETTING | 2 |
| 13 | 90602KPL900 | CLAMP, TUBE(D12.0) | 1 |
| 14 | 934040604007 | BOLT-WASHER, 6X40 | 2 |
| 15 | 9390325480 | SCREW, TAPPING, 5X20 | 12 |
| 16 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 17 | 9501840250 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 |
