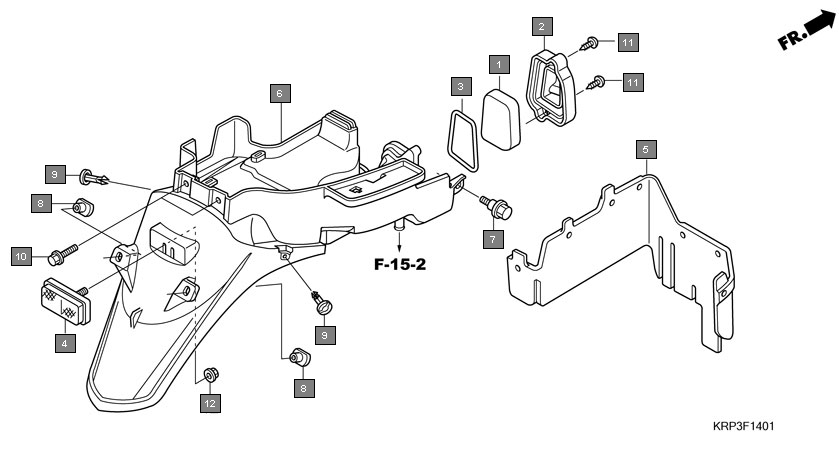

Scooters Aviator SCV100G8 Frame Rear fender(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 18805KVT900 ELEMENT, SUB AIR CLEANER 1
2 18807KVT900 COVER, SUB AIR CLEANER 1
3 18812KVT900 SEAL, SUB AIR CLEANER 1
4 33741KPL901 REFLECTOR, REFLEX 1
5 80104KPL900 PLATE, RR. FENDER SPLASH GUARD 1
6 80105KVT900ZA FENDER, RR. *NH1* BLACK 1
7 90111KPL900 BOLT, INNER COVER 1
8 90311KTE910 NUT, RR. FENDER 2
9 90683GAZ930 CLIP, TRIM 2
10 934040601207 BOLT-WASHER, 6X12 2
11 9390325480 SCREW, TAPPING, 5X20 2
12 9405005000 NUT, FLANGE, 5MM 1
