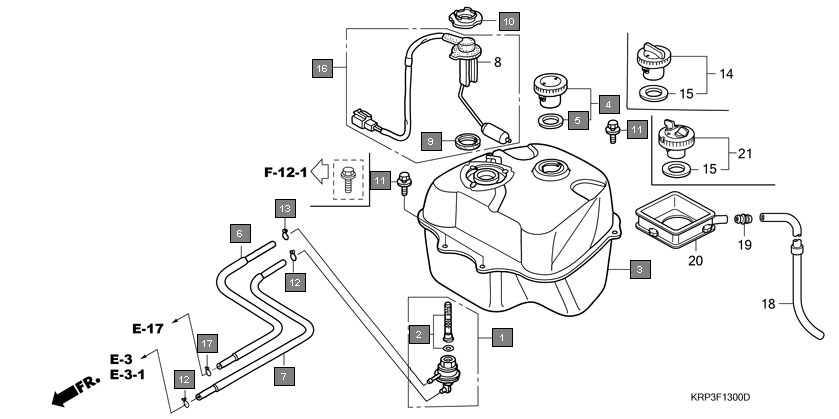

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16950KRP981 | COCK ASSY., FUEL | 1 |
2 | 16952KRP980 | SCREEN SET, FUEL STRAINER | 1 |
3 | 17500KPL841 | TANK COMP., FUEL | 1 |
4 | 17683KVT900 | TUBE COMP., FUEL | 1 |
5 | 17684KVT900 | TUBE COMP., VACUUM | 1 |
6 | 37800KVT911 | FUEL UNIT | 1 |
7 | 37801GA7700 | PACKING, BASE | 1 |
8 | 37802GA7700 | RETAINER, FUEL UNIT | 1 |
9 | 934040601208 | BOLT-WASHER, 6X12 | 4 |
10 | 9500202070 | CLIP, TUBE(B7) | 2 |
11 | 9500202080 | CLIP, TUBE(B8) | 1 |
12 | 17632383831 | PACKING, FUEL FILLER CAP | 1 |
13 | 9500250000 | CLIP, TUBE(C9) | 1 |
14 | 17515KVT900 | TUBE, 8X12X480 | 1 |
15 | 17525KTP900 | JOINT, FUEL TUBE | 1 |
16 | 17525KVT900 | TRAY, FUEL | 1 |
17 | 17620KVT900 | CAP COMP., FUEL FILLER | 1 |
