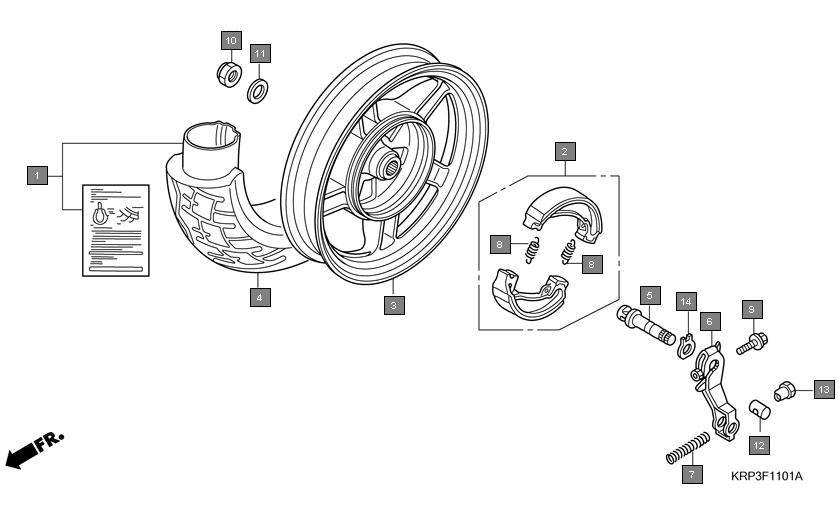

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06427KPL840 | TUBE SET, TUFF UP | 1 |
2 | 06430KPL840 | SHOE SET, BRAKE | 1 |
3 | 42601KVT911 | WHEEL COMP., RR. | 1 |
4 | 42711KRP901 | TIRE(3.50-10 MRF) | 1 |
5 | 43141KVT900 | CAM, RR. BRAKE | 1 |
6 | 43410KPL840 | ARM, RR. BRAKE | 1 |
7 | 43472KPL900 | SPRING, RR. BRAKE ARM | 1 |
8 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
9 | 90112KPL900 | BOLT, FLANGE, 6X30 | 1 |
10 | 90305KPL900 | NUT, HEX. SPECIAL, 16MM | 1 |
11 | 90501KPL900 | WASHER, 16MM | 1 |
12 | 9501532001 | JOINT B, BRAKE ARM | 1 |
13 | 9501542000 | NUT B, BRAKE ROD ADJUSTING | 1 |
