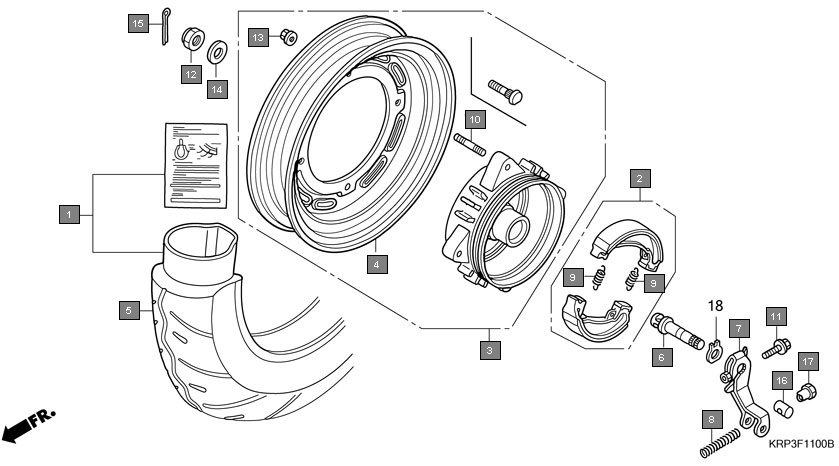

Scooters Aviator SCV100G8 Frame Rear wheel(1)
Ref.No. Part No. Description Oty
1 06427KPL840 TUBE SET, TUFF UP 1
2 06430KPL840 SHOE SET, BRAKE 1
3 42650KPL900 WHEEL SUB ASSY., RR. 1
4 42702KPL900 RIM COMP., WHEEL 1
5 42711KRP901 TIRE(3.50-10 MRF) 1
6 43141KVT900 CAM, RR. BRAKE 1
7 43410KPL840 ARM, RR. BRAKE 1
8 43472KPL900 SPRING, RR. BRAKE ARM 1
9 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
10 90110KPL900 BOLT, STUD, 8X22 4
11 90112KPL900 BOLT, FLANGE, 6X30 1
12 90305KPL900 NUT, HEX. SPECIAL, 16MM 1
13 90309KPL900 NUT, SPECIAL FLANGE, 8MM 4
14 90501KPL900 WASHER, 16MM 1
15 9501532001 JOINT B, BRAKE ARM 1
16 9501542000 NUT B, BRAKE ROD ADJUSTING 1
