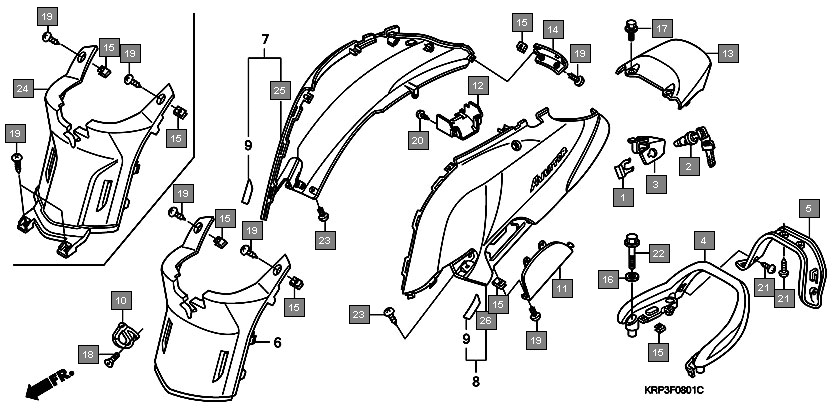

Scooters Aviator SCV100G8 Frame Body cover(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KPL841 KEY, SEAT LOCK 1
3 77241KVT900 STAY, SEAT LOCK 1
4 77300KVT900ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
5 77301KVT900 COVER, RR. GRIP 1
6 80151KVT900ZA COVER, CENTER *NH1* BLACK 1
7 83010KVT305ZA COVER SET, R. BODY(WL) *NHB04M* MONSOON GRAY METALLIC 1
8 83010KVT305ZB COVER SET, R. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
9 83010KVT305ZC COVER SET, R. BODY(WL) *NHB06M* SPACE SILVER METALLIC 1
10 83010KVT305ZD COVER SET, R. BODY(WL) *RP181M* BERRY PURPLE METALLIC 1
11 83010KVT305ZE COVER SET, R. BODY(WL) *R329M* REBEL RED METALLIC 1
12 83020KVT305ZA COVER SET, L. BODY(WL) *NHB04M* MONSOON GRAY METALLIC 1
13 83020KVT305ZB COVER SET, L. BODY(WL) *NHB05P* PEARL IGNEOUS BLACK 1
14 83020KVT305ZC COVER SET, L. BODY(WL) *NHB06M* SPACE SILVER METALLIC 1
15 83020KVT305ZD COVER SET, L. BODY(WL) *RP181M* BERRY PURPLE METALLIC 1
16 83020KVT305ZE COVER SET, L. BODY(WL) *R329M* REBEL RED METALLIC 1
17 83501KVT900 PROTECTOR, BODY COVER 2
18 83508KPL900 HOOK, LUGGAGE 1
19 83520KVT900ZB COVER, MAINTENANCE AIR CLEANER *NHB05P* PEARL IGNEOUS BLACK 1
20 83520KVT900ZE COVER, MAINTENANCE AIR CLEANER *R329M* REBEL RED METALLIC 1
21 83520KVT900ZA COVER, MAINTENANCE AIR CLEANER *NHB04M* MONSOON GRAY METALLIC 1
22 83520KVT900ZD COVER, MAINTENANCE AIR CLEANER *RP181M* BERRY PURPLE METALLIC 1
23 83520KVT900ZC COVER, MAINTENANCE AIR CLEANER *NHB06M* SPACE SILVER METALLIC 1
24 83530KVT900 COVER, SEAT LOCK CABLE 1
25 83700KVT900ZB COVER SET, RR. CENTER(WL) *NHB05P* PEARL IGNEOUS BLACK 1
26 83700KVT900ZE COVER SET, RR. CENTER(WL) *R329M* REBEL RED METALLIC 1
27 83700KVT900ZA COVER SET, RR. CENTER(WL) *NHB04M* MONSOON GRAY METALLIC 1
28 83700KVT900ZD COVER SET, RR. CENTER(WL) *RP181M* BERRY PURPLE METALLIC 1
29 83700KVT900ZC COVER SET, RR. CENTER(WL) *NHB06M* SPACE SILVER METALLIC 1
30 83751KVT900ZB COVER, RR. CENTER LOWER *NHB05P* PEARL IGNEOUS BLACK 1
31 83751KVT900ZE COVER, RR. CENTER LOWER *R329M* REBEL RED METALLIC 1
32 83751KVT900ZA COVER, RR. CENTER LOWER 1
33 83751KVT900ZD COVER, RR. CENTER LOWER *RP181M* BERRY PURPLE METALLIC 1
34 83751KVT900ZC COVER, RR. CENTER LOWER *NHB06M* SPACE SILVER METALLIC 1
35 90344KRP900 NUT, CLIP, 5MM 11
36 90505KY4900 WASHER, PLAIN, 8MM 4
37 934040601207 BOLT-WASHER, 6X12 2
38 93600050160G SCREW, FLAT, 5X16 2
39 9390325380 SCREW, TAPPING, 5X16 5
40 9390334320 SCREW, TAPPING, 4X12 2
41 9390334380 SCREW, TAPPING, 4X12 4
42 957010804000 BOLT, FLANGE, 8X40 4
43 91509GE2760 SCREW, PAN, 5X11.5 4
