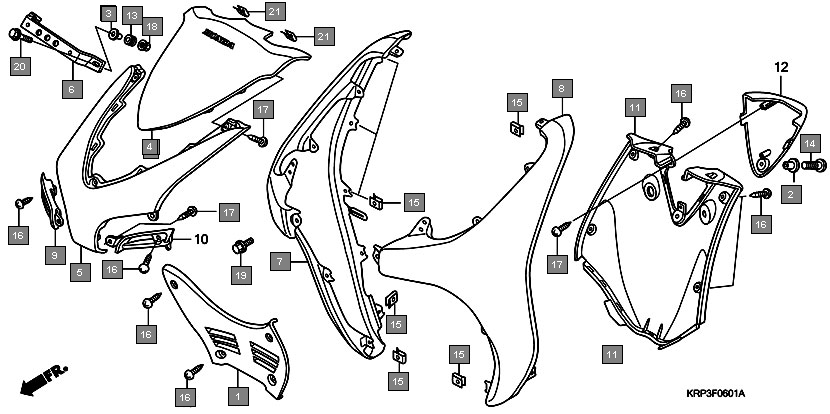

Scooters Aviator SCV100G8 Frame Front cover(scv100g8/scv110ga,c,d,fd)
Ref.No. Part No. Description Oty
1 50623KVT900ZA COVER, FR. UNDER *NH1* BLACK 1
2 61103KRY900 COLLAR A, FR. FENDER 1
3 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
4 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
5 64200KVT900ZB COVER SET, FR. UPPER(WL) *NHB05P* PEARL IGNEOUS BLACK 1
6 64200KVT900ZE COVER SET, FR. UPPER(WL) *R329M* REBEL RED METALLIC 1
7 64200KVT900ZA COVER SET, FR. UPPER(WL) *NHB04M* MONSOON GRAY METALLIC 1
8 64200KVT900ZD COVER SET, FR. UPPER(WL) *RP181M* BERRY PURPLE METALLIC 1
9 64200KVT900ZC COVER SET, FR. UPPER(WL) *NHB06M* SPACE SILVER METALLIC 1
10 64302KVT900ZA COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC 1
11 64303KVT900 STAY, FR. NUMBER PLATE 1
12 64304KVT900ZZ COVER COMP., R. FR. 1
13 64305KVT900ZZ COVER COMP., L. FR. 1
14 64312KVT900ZA LOUVER, R. FR. COVER *NH1* BLACK 1
15 64313KVT900ZA LOUVER, L. FR. COVER *NH1* BLACK 1
16 81131KVT900ZB COVER, INNER *NHB05P* PEARL IGNEOUS BLACK 1
17 81131KVT900ZE COVER, INNER *R329* REBEL RED METALLIC 1
18 81131KVT900ZA COVER, INNER *NHB04M* MONSOON GRAY METALLIC 1
19 81131KVT900ZC COVER, INNER *NHB06M* SPACE SILVER METALLIC 1
20 81131KVT900ZD COVER, INNER *RP181M* BERRY PURPLE METALLIC 1
21 81132KVT900ZA COVER, INNER UPPER *NH1* BLACK 1
22 84703425000 RUBBER, TAILLIGHT MOUNTING 2
23 90113KVT900 BOLT, SPECIAL HEX., 6X20 1
24 90344KRB900 NUT, CLIP, 5MM 14
25 9390325380 SCREW, TAPPING, 5X16 12
26 9390334320 SCREW, TAPPING, 4X12 7
27 9405006080 NUT, FLANGE, 6MM 2
28 957010601208 BOLT, FLANGE, 6X12 4
29 957010602507 BOLT, FLANGE, 6X25 2
30 90344KRP900 NUT, CLIP, 5MM 2
