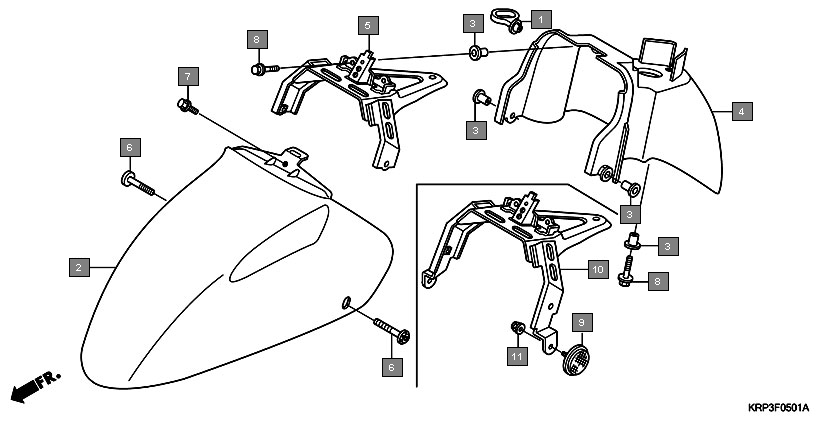

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 45451471000 | GROMMET, WIRE | 1 |
2 | 61100KVT900ZZ | FENDER A, FR. | 1 |
3 | 61103KRY900 | COLLAR A, FR. FENDER | 5 |
4 | 61120KVT910ZA | FENDER B, FR. *NH1* BLACK | 1 |
5 | 61120KVT900ZA | FENDER B, FR. *NH1* BLACK | 1 |
6 | 61300KVT900 | STAY COMP., FR. FENDER | 1 |
7 | 90113KVT900 | BOLT, SPECIAL HEX., 6X20 | 2 |
8 | 957010601208 | BOLT, FLANGE, 6X12 | 1 |
9 | 957010602008 | BOLT, FLANGE, 6X20 | 3 |
