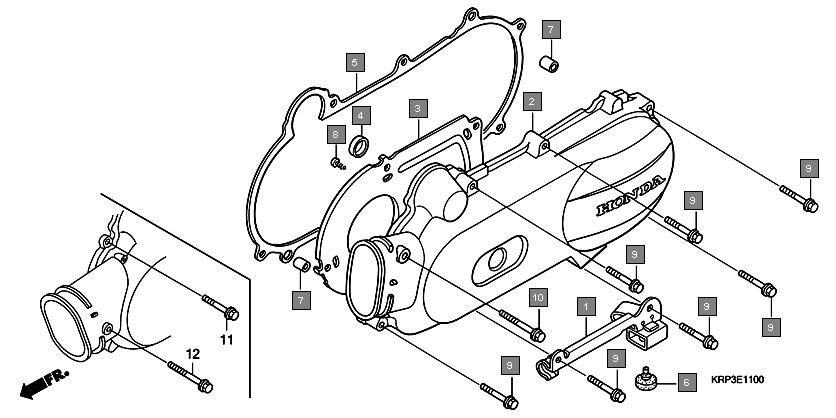

Scooters Aviator SCV100G8 Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11230KVT900 CLAMPER COMP., RR. BRAKE CABLE 1
2 11341KVT900 COVER, L. SIDE 1
3 11342GCC000 PLATE, L. COVER 1
4 11344GW3980 RUBBER, STARTER PINION HOLDER 1
5 11395KRP980 GASKET, L. COVER 1
6 50501KPL900 STOPPER, RUBBER 1
7 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
8 9390334120 SCREW, TAPPING, 4X8 5
9 960010603500 BOLT, FLANGE, 6X35 7
10 960010607500 BOLT, FLANGE, 6X75 1
