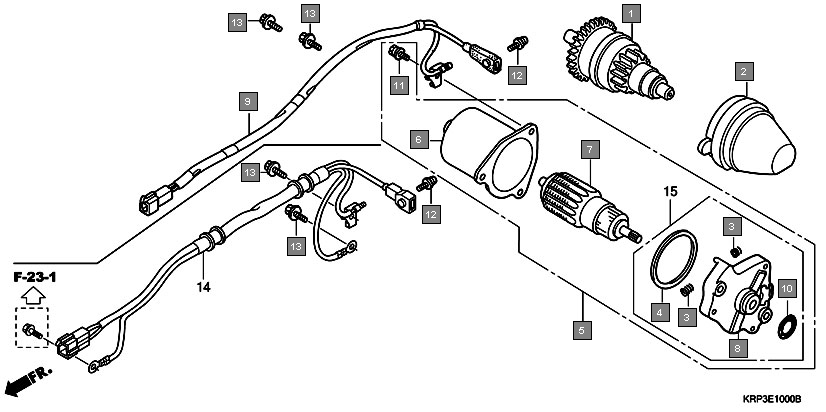

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28120KPL901 | PINION ASSY., STARTER(14/40T) | 1 |
2 | 28150KPL900 | HOLDER COMP., STARTER PINION | 1 |
3 | 31204KPL901 | SPRING, BRUSH | 2 |
4 | 31206KPL901 | PACKING | 1 |
5 | 31210KVT901 | MOTOR UNIT, STARTING | 1 |
6 | 31211KPL901 | YOKE | 1 |
7 | 31212KPL901 | ARMATURE | 1 |
8 | 31214KPL901 | BRACKET COMP., FR. | 1 |
9 | 91309KPL901 | O-RING | 1 |
10 | 934120501208 | BOLT-WASHER, 5X12 | 3 |
11 | 938920400608 | SCREW-WASHER, 4X6 | 1 |
12 | 960010603500 | BOLT, FLANGE, 6X35 | 2 |
13 | 32105KVT901 | HARNESS COMP., STARTING MOTOR | 2 |
