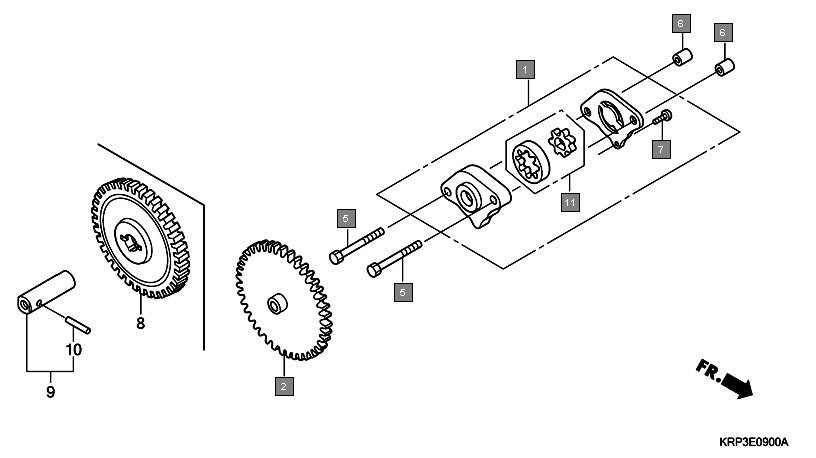

Scooters Aviator SCV100G8 Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KTP900 PUMP ASSY., OIL 1
2 15133GFC901 GEAR, OIL PUMP DRIVEN(39T) 1
3 90001KPL900 BOLT, HEX., 6X30 2
4 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
5 9390134120 SCREW, TAPPING, 4X8 1
6 15021436000 ROTOR SET, OIL PUMP 1
