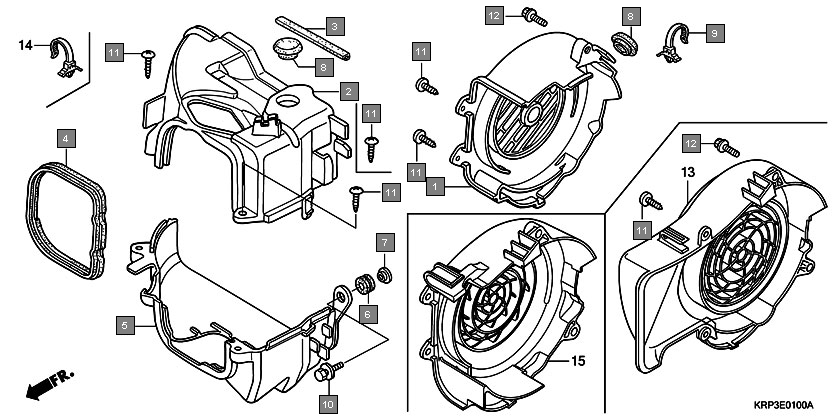

Scooters Aviator SCV100G8 Engine Shroud/fan cover
Ref.No. Part No. Description Oty
1 19610KPL840 COVER COMP., FAN 1
2 19621KPL840 SHROUD, IN. 1
3 19623KPL900 RUBBER, IN. SHROUD SEAL 1
4 19625KPL840 SEAL, SHROUD 1
5 19631KPL840 SHROUD, EX. 1
6 19639GBC000 RUBBER, MOUNTING 1
7 33715GB0900 COLLAR, TAILLIGHT SETTING 1
8 82871671000 GROMMET, DRAIN HOLE, 25MM 1
9 90672KPL901 CLIP, BODY 1
10 934040602000 BOLT-WASHER, 6X20 1
11 9390325380 SCREW, TAPPING, 5X16 4
12 960010602507 BOLT, FLANGE, 6X25 2
