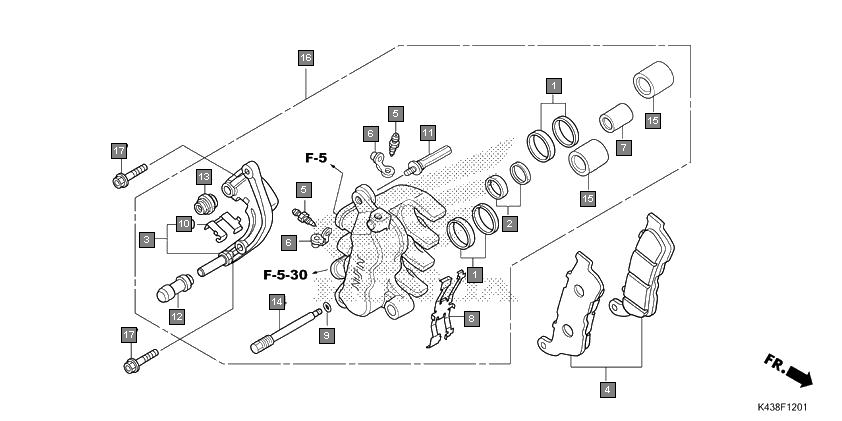

Motorcycles CB Hornet 160R CBF160MH Frame Front brake caliper(2)
Ref.No. Part No. Description Oty
1 06431MA3405 SEAL SET, PISTON 2
2 06451MZ2405 SEAL SET, PISTON 1
3 06453MCWH01 BRACKET SUB ASSY., R. FR. 1
4 06455K43911 PAD SET, FR. 1
5 43352568003 SCREW, BLEEDER(NISSIN) 2
6 43353461771 CAP, BLEEDER 2
7 45107MAJG41 PISTON A, 22X27 1
8 45108MBTD52 SPRING, PAD 1
9 45111MAJG41 RING, STOPPER 1
10 45112MZ2006 RETAINER, BRACKET 1
11 45131ML7921 BOLT A, PIN 1
12 45132166016 BOOT, PIN BUSH(NISSIN) 1
13 45133MA3006 BOOT B 1
14 45215MBTD51 PIN, HANGER 1
15 45218MAJG41 PISTON B, 27X35 2
16 45250K43911 CALIPER SUB ASSY., R. FR. (NISSIN) 1
17 90131KYJ710 BOLT, FLANGE, 8X32 2
