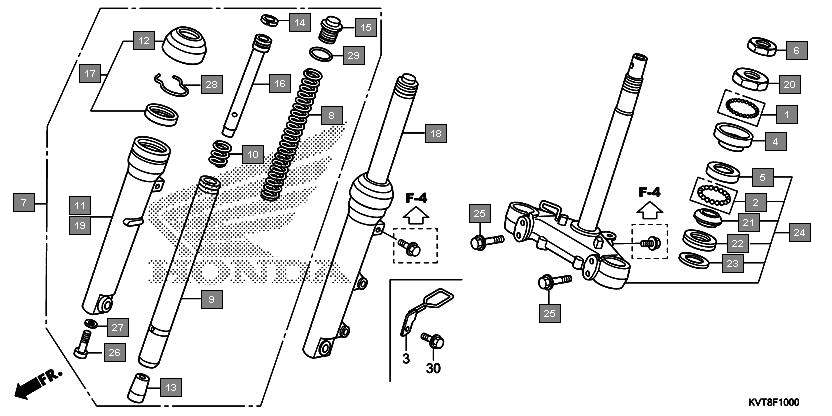

Scooters Aviator SCV110GFF Frame Steering stem/front fork
Ref.No. Part No. Description Oty
1 06530KEMP00 BALL SET, STEEL, #5X26 1
2 06531KEMP00 BALL SET, STEEL, #8X19 1
3 50301KEM900 RACE, STEERING UPPER BALL 1
4 50302268010 RACE, STEERING BOTTOM BALL 1
5 50306KPL900 NUT, STEERING STEM LOCK 1
6 51400KVTF11 FORK ASSY., R. FR.(SHOWA) 1
7 51401KVT911 SPRING, FR. FORK 2
8 51410K24911 PIPE COMP., FR. FORK 2
9 51412KSP901 SPRING, REBOUND 2
10 51420KVT961 CASE, R. FR. BOTTOM 1
11 51420KVTF11 CASE, R. FR. BOTTOM 1
12 51425KST901 SEAL, DUST 2
13 51432KFN851 PIECE, OIL LOCK 2
14 51437KTC901 RING, PISTON 2
15 51454K24911 BOLT, FR. FORK 2
16 51470KVT911 PIPE, SEAT 2
17 51490KST305 SEAL SET, FR. FORK 2
18 51500KVTF11 FORK ASSY., L. FR.(SHOWA) 1
19 51520KVT961 CASE, L. FR. BOTTOM 1
20 51520KVTF11 CASE, L. FR. BOTTOM 1
21 53211KEM900 RACE, STEERING TOP CONE 1
22 53212250010 RACE, STEERING BOTTOM CONE 1
23 53214250000 DUST SEAL, STEERING HEAD 1
24 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
25 53219KVT910 STEM SUB ASSY., STEERING 1
26 90101KVTD00 BOLT, FLANGE, 10X42 4
27 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
28 90544439930 PACKING(SHOWA) 2
29 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
30 91356KAG901 O-RING(SHOWA) 2
