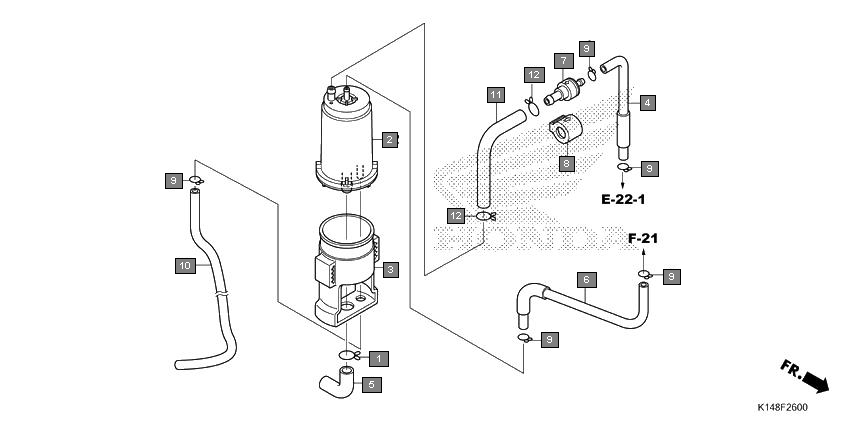

Motorcycles Dream Yuga CB110AMH Frame Canister
Ref.No. Part No. Description Oty
1 16163K43900 CLIP 1
2 17310K35V01 CANISTER COMP. 1
3 17311K63D30 RUBBER, CANISTER 1
4 17413K63D30 TUBE, PURGE 1
5 17414K63D30 TUBE, AIR 1
6 17415K14A30 TUBE, BREATHER 1
7 17440K43901 VALVE, ONE WAY 1
8 17441K43900 RUBBER, ONE WAY VALVE 1
9 90652KWPF00 CLIP, TUBE(B8) 5
10 950014541040 TUBE, FUEL, 4.5X410 (95001-45001-60M) 1
11 950017515040 TUBE, FUEL, 7.3X150 (95001-75001-60M) 1
12 9500202120 CLIP, TUBE(B12) 2
