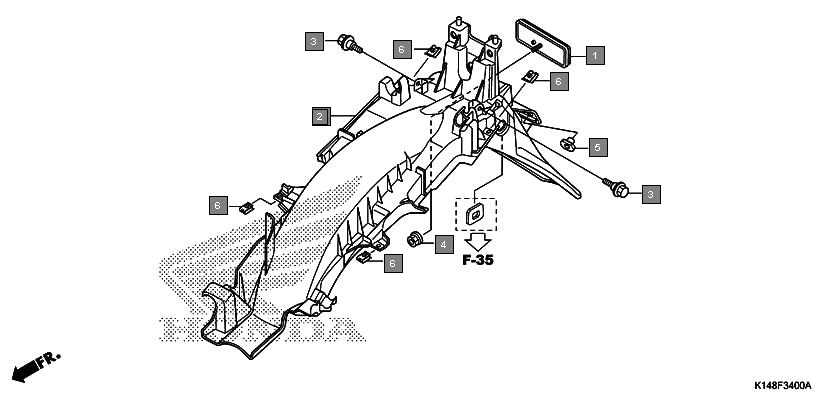

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
2 | 80100K14900 | FENDER, RR. | 1 |
3 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
4 | 90301KWN901 | NUT, U, 5MM | 1 |
5 | 90311KTE910 | NUT, RR. FENDER | 2 |
6 | 90320GC3000 | NUT, SPRING, 5MM | 4 |
7 | 80100K14A30 | FENDER, RR | 1 |
