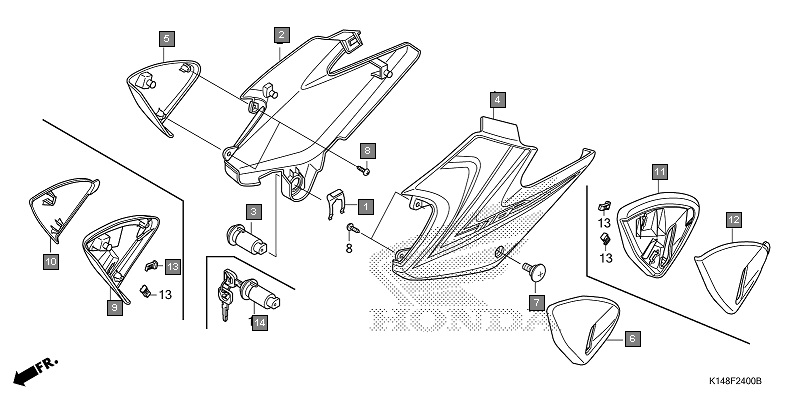

Motorcycles Dream Yuga CB110AMH Frame Side cover
Ref.No. Part No. Description Oty
1 75581GN8920 SPRING, LOCK KEY SETTING 1
2 83520K14700ZA COVER SET, R. SIDE(WL) *TYPE6* 1
3 83520K14700ZC COVER SET, R. SIDE(WL) *TYPE4* 1
4 83520K14700ZB COVER SET, R. SIDE(WL) *TYPE5* 1
5 83520K14700ZE COVER SET, R. SIDE(WL) *TYPE2* 1
6 83520K14700ZF COVER SET, R. SIDE(WL) *TYPE1* 1
7 83520K14700ZD COVER SET, R. SIDE(WL) *TYPE3* 1
8 83550K14931 LOCK, SIDE COVER(MINDA) 1
9 83520K14A30ZA COVER SET, R. SIDE(WL)*TYPE6* 1
10 83520K14A30ZB COVER SET, R. SIDE(WL) *TYPE5* 1
11 83620K14700ZE COVER SET, L. SIDE(WL) *TYPE2* 1
12 83620K14700ZD COVER SET, L. SIDE(WL) *TYPE3* 1
13 83620K14700ZC COVER SET, L. SIDE(WL) *TYPE4* 1
14 83620K14700ZB COVER SET, L. SIDE(WL) *TYPE5* 1
15 83620K14700ZA COVER SET, L. SIDE(WL) *TYPE6* 1
16 83620K14700ZF COVER SET, L. SIDE(WL) *TYPE1* 1
17 83740K14900 LID, R. SIDE COVER 1
18 83520K14A30ZC COVER SET, R. SIDE(WL) *TYPE4* 1
19 83840K14900 LID, L. SIDE COVER 1
20 83520K14A30ZD COVER SET, R. SIDE(WL)*TYPE3* 1
21 83520K14A30ZE COVER SET, R. SIDE(WL) *TYPE2* 1
22 90103K14900 BOLT, COWL SETTING 1
23 9390324220 SCREW, TAPPING, 4X10 4
24 83520K14A30ZF COVER SET, R. SIDE(WL) *TYPE1* 1
25 83620K14A30ZA COVER SET, L. SIDE(WL) *TYPE6* 1
26 83620K14A30ZB COVER SET, L. SIDE(WL) *TYPE5* 1
27 83620K14A30ZC COVER SET, L. SIDE(WL) *TYPE4* 1
28 83620K14A30ZD COVER SET, L. SIDE(WL) *TYPE3* 1
29 83620K14A30ZE COVER SET, L. SIDE(WL)*TYPE2* 1
30 83620K14A30ZF COVER SET, L. SIDE(WL) *TYPE1* 1
31 83741K14A30 COVER A, R. SIDE(SUB) 1
32 83745K14A30 COVER B, R. SIDE(SUB) 1
33 83841K14A30 COVER A, L. SIDE(SUB) 1
34 83845K14A30 COVER B, L. SIDE(SUB) 1
35 90651K14A31 CLIP, SLIDE 4
36 83550K14901 LOCK, SIDE COVER(JAY USHIN) 1
