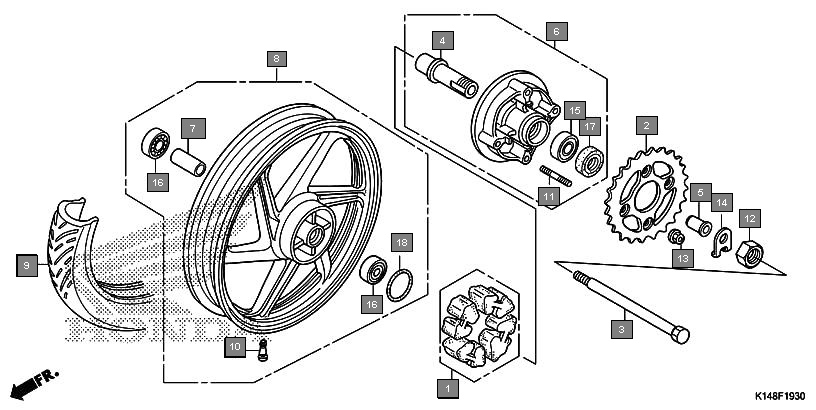

Motorcycles Dream Yuga CB110AMH Frame Rear wheel(cb110-2id/4id/6id/cb110m/amf)
Ref.No. Part No. Description Oty
1 06410K67900 DAMPER SET, WHEEL 1
2 06410KTE910 DAMPER SET, WHEEL 1
3 41201K14900 SPROCKET, FINAL DRIVEN(41T) 1
4 42301KZAW00 AXLE, RR. WHEEL 1
5 42303K14900 SLEEVE, RR. WHEEL 1
6 42304K14900 COLLAR, RR. AXLE SLEEVE 1
7 42615K14900 FLANGE SUB ASSY., FINAL DRIVEN 1
8 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
9 42650K63D30ZA WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC 1
10 42650KTE601ZA WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC 1
11 42711KTE602 TIRE, RR.(TVS) (80/100-18 M/C 54P) 1
12 42711KTE601 TIRE, RR.(MRF) (80/100-18 M/C 54P) 1
13 42711K55601 TIRE, RR.(CEAT) (80/100-18 M/C 54P) 1
14 42711K23913 TIRE, RR.(DUNLOP) (80/100-18M/C 54P) 1
15 42753K24G11 VALVE, RIM(ACCURA) 1
16 42753KWF901 VALVE, RIM(TRITON) 1
17 90128KTE910 BOLT, STUD, 8X20 4
18 90307KTE910 NUT, RR. AXLE SLEEVE(17MM) 1
19 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
20 90559KTR900 WASHER, RR. AXLE 1
21 91051K23902 BEARING, RADIAL BALL, 6203UU(SKF) 1
22 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 1
23 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
24 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
25 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
26 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
27 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
28 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
29 91304704000 O-RING, 42MM 1
