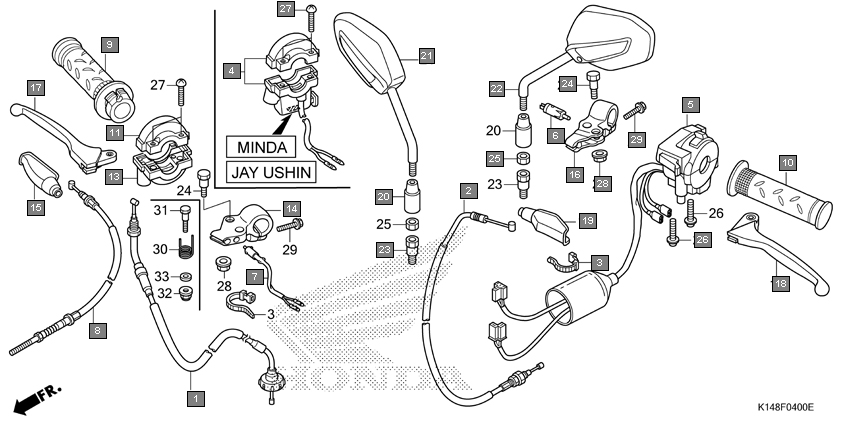

Motorcycles Dream Yuga CB110AMH Frame Handle lever/switch/cable/mirror
Ref.No. Part No. Description Oty
1 06179K14960 CABLE SET, THROTTLE 1
2 06179K23900 CABLE SET, THROTTLE 1
3 22870K14961 CABLE COMP., CLUTCH 1
4 32161KSP920 BAND B1, WIRE 2
5 35150K14941 SWITCH ASSY., STARTER (JAY USHIN) 1
6 35150K14921 SWITCH ASSY., STARTER(MINDA) 1
7 35200K14961 SWITCH ASSY., WINKER 1
8 35200K14962 SWITCH ASSY., WINKER(MINDA) 1
9 35330KWS901 SWITCH ASSY., CLUTCH 1
10 35340KZAW01 SWITCH ASSY., FR. STOP 1
11 45450K14901 CABLE COMP., FR. BRAKE(HI-LEX) 1
12 53140K63D10 GRIP COMP., THROTTLE 1
13 35200K14A31 SWITCH ASSY., WINKER (JAY USHIN) 1
14 53166KSP900 GRIP, L. HANDLE 1
15 35200K14A32 SWITCH ASSY., WINKER(MINDA)... 1
16 53175K63D30 LEVER COMP., R. HANDLE 1
17 88210K38941ZA MIRROR COMP., R.*NH1* BLACK 1
18 53171K14900 BRACKET, R. HANDLE LEVER 1
19 88210K38941ZD MIRROR COMP., R. *R232*............PATRIOT RED 1
20 53171KCC900 COVER, R. HANDLE LEVER 1
21 53172K14910 BRACKET, L. HANDLE LEVER 1
22 88210K38941ZE MIRROR COMP., R. *NHB69R*.........ORCUS GRAY R 1
23 53175KYY900 LEVER COMP., R. HANDLE 1
24 88220K38941ZA MIRROR COMP., L. *NH1*BLACK 1
25 53178KYY900 LEVER COMP., L. HANDLE 1
26 88220K38941ZD MIRROR COMP., L. *R232*.PATRIOT RED 1
27 53179KTC900 COVER, L. HANDLE LEVER 1
28 88220K38941ZE MIRROR COMP., L. *NHB69R*.........ORCUS GRAY R 1
29 90103K38940 BOLT, ADAPTER, 10MM 1
30 88114198D10 CAP, LOCK NUT 2
31 88210K38901ZA MIRROR COMP., R. *R232* PATRIOT RED 1
32 88210K38901ZC MIRROR COMP., R. *NH1* BLACK 1
33 88210K38901ZD MIRROR COMP., R. *NHB69R* ORCUS GRAY R 1
34 88220K38901ZA MIRROR COMP., L. *R232* PATRIOT RED 1
35 88220K38901ZC MIRROR COMP., L. *NH1* BLACK 1
36 88220K38901ZD MIRROR COMP., L. *NHB69R* ORCUS GRAY R 1
37 90103KTE920 BOLT, ADAPTER, 10MM 2
38 90113KYY900 BOLT, HANDLE LEVER PIVOT 2
39 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
40 93500050200G SCREW, PAN, 5X20 2
41 93500050220G SCREW, PAN, 5X22 2
42 9405006000 NUT, FLANGE, 6MM 2
43 957010602200 BOLT, FLANGE, 6X22 2
