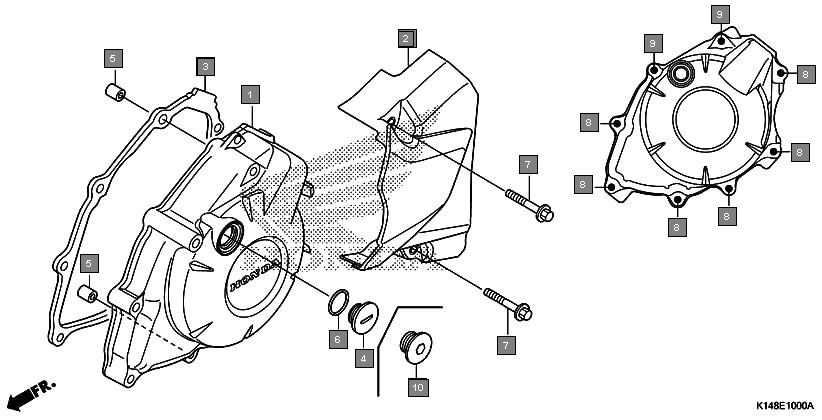

Motorcycles Dream Yuga CB110AMH Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341K14960 COVER, L. CRANKCASE 1
2 11360K23900 COVER COMP., L. RR. 1
3 11395KWS900 GASKET, L. CRANKCASE COVER 1
4 90702KRM840 DOWEL PIN, 8X14 2
5 91303KRM840 O-RING, 13.8X2.5 1
6 960010603000 BOLT, FLANGE, 6X30 2
7 960010603500 BOLT, FLANGE, 6X35 6
8 960010606000 BOLT, FLANGE, 6X60 2
9 90084MN8010 CAP, 14MM 1
10 11360K63D30 COVER COMP., L. RR. 1
11 11395K63D31 GASKET, L. CRANKCASE COVER 1
12 90084K38940 CAP, 14MM 1
