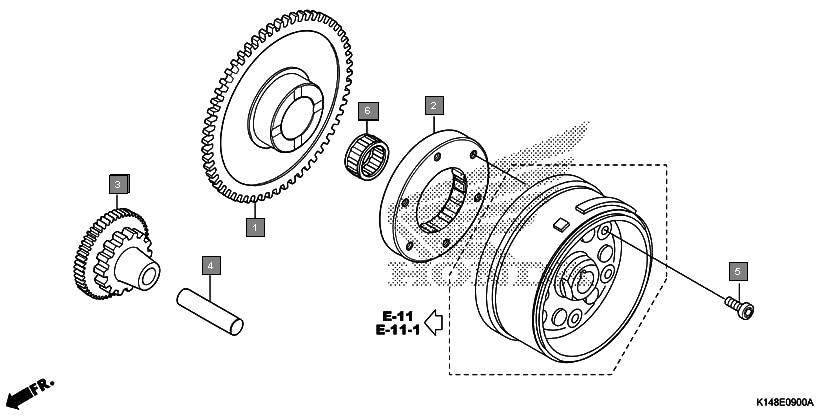

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28111KZAW00 | GEAR, STARTER DRIVEN(55T) | 1 |
2 | 28120KPH701 | CLUTCH ASSY., ONE WAY(EXEDY) | 1 |
3 | 28131KWS910 | GEAR, STARTER REDUCTION (55T/14T) | 1 |
4 | 28131K63D40 | GEAR, STARTER REDUCTION (55T/14T) | 1 |
5 | 28132KWS900 | SHAFT, REDUCTION GEAR | 1 |
6 | 90085KSP901 | BOLT, SOCKET, 6MM | 6 |
7 | 91011K63D41 | BEARING, NEEDLE, 21X27X18(NRB) | 1 |
8 | 91011KYY901 | BEARING, NEEDLE, 21X27X18(NRB) | 1 |
9 | 91011KWS901 | BEARING, NEEDLE, 21X27X18 | 1 |
