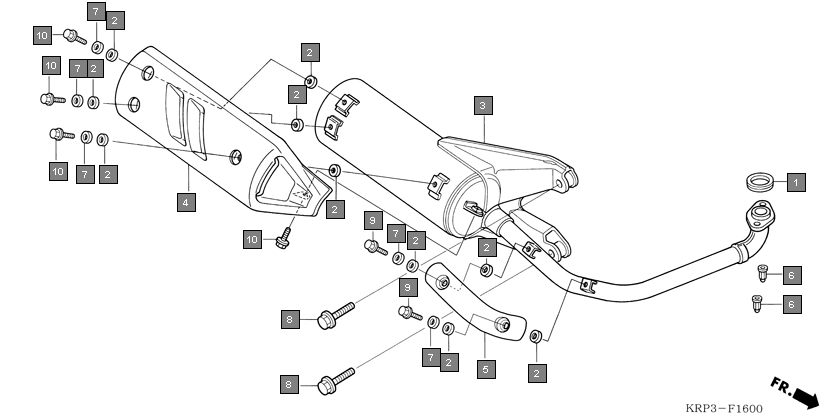

Scooters Dio SCV100F5 Frame Exhaust muffler(scv100f3,5,9)
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292GW3980 PACKING, PROTECTOR 10
3 18300KRP940 MUFFLER COMP., EX. 1
4 18300KRP910 MUFFLER COMP., EX. 1
5 18318KRP910 PROTECTOR, MUFFLER 1
6 18319KRP900 PROTECTOR, EX. PIPE 1
7 90308KPL840 NUT, CAP, 6MM 2
8 9410106700 WASHER, PLAIN, 6MM 5
9 958011004007 BOLT, FLANGE, 10X40 2
10 960010601007 BOLT, FLANGE, 6X10 2
11 960010601207 BOLT, FLANGE, 6X12 4
