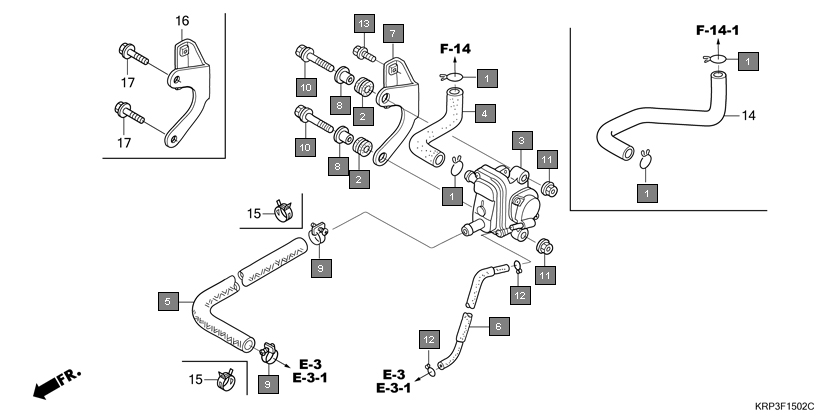

Scooters Dio SCV100F5 Frame Air suction valve(2)
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 17622GB7900 RUBBER, CUSHION 2
3 18600KPL841 VALVE ASSY., AIR SUCTION 1
4 18651KPL840 TUBE, AIR SUCTION VALVE 1
5 18652KPL840 HOSE, AIR SUCTION VALVE 1
6 18653KPL840 TUBE, AIR SUCTION VALVE(VACUUM) 1
7 50142KPL840 STAY, AIR SUCTION VALVE 1
8 90501KC2750 WASHER, REGULATOR SETTING 2
9 91462KM7910 CLIP, TUBE 2
10 934040603008 BOLT-WASHER, 6X30 2
11 9405006000 NUT, FLANGE, 6MM 2
12 9500202070 CLIP, TUBE(B7) 2
13 957010601208 BOLT, FLANGE, 6X12 2
