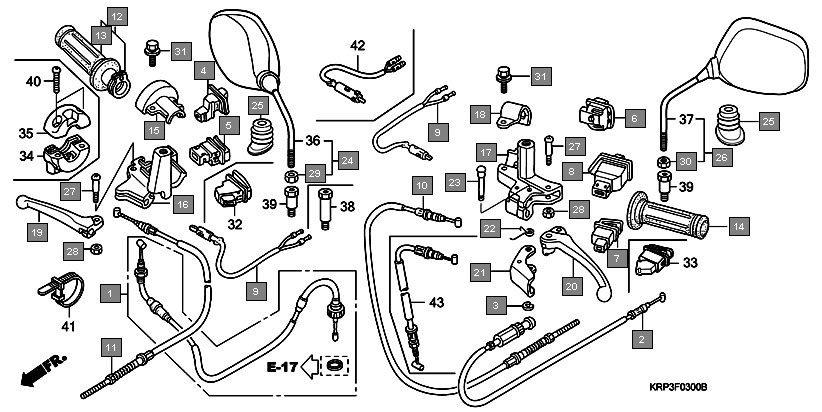

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17920KPL315 | CABLE SET, THROTTLE | 1 |
| 2 | 17950KPL900 | CABLE COMP., CHOKE | 1 |
| 3 | 30158GW3980 | E-RING, 3MM | 1 |
| 4 | 35150KPL901 | SWITCH UNIT, LIGHTING(MINDA) | 1 |
| 5 | 35150KPL842 | SWITCH UNIT, LIGHTING(JAY USHIN) | 1 |
| 6 | 35160KPL901 | SWITCH UNIT, STARTING(MINDA) | 1 |
| 7 | 35160KPL842 | SWITCH UNIT, STARTING(JAY USHIN) | 1 |
| 8 | 35170KPL901 | SWITCH UNIT, DIMMER(MINDA) | 1 |
| 9 | 35170KPL842 | SWITCH UNIT, DIMMER(JAY USHIN) | 1 |
| 10 | 35180KPL901 | SWITCH UNIT, HORN(MINDA) | 1 |
| 11 | 35180KPL842 | SWITCH UNIT, HORN(JAY USHIN) | 1 |
| 12 | 35200KPL901 | SWITCH UNIT, WINKER(MINDA) | 1 |
| 13 | 35200KPL842 | SWITCH UNIT, WINKER(JAY USHIN) | 1 |
| 14 | 35340KPL841 | SWITCH ASSY., FR. STOP | 2 |
| 15 | 43450KRP980 | CABLE COMP., RR. BRAKE | 1 |
| 16 | 45450KRP980 | CABLE COMP., FR. BRAKE | 1 |
| 17 | 53140KPL901 | GRIP COMP., THROTTLE | 1 |
| 18 | 53165KPL900 | GRIP, R. HANDLE | 1 |
| 19 | 53166KPL900 | GRIP, L. HANDLE | 1 |
| 20 | 53167KPL900 | HOUSING, UPPER THROTTLE | 1 |
| 21 | 53168KPL900 | HOUSING, UNDER THROTTLE | 1 |
| 22 | 53172KRP980 | BRACKET, HANDLE | 1 |
| 23 | 53173KPL900 | BAND, HANDLE BRACKET | 1 |
| 24 | 53175KPL900 | LEVER, R. STEERING HANDLE | 1 |
| 25 | 53178KPL900 | LEVER, L. HANDLE | 1 |
| 26 | 53181KRP980 | LEVER COMP., PARKING | 1 |
| 27 | 53182GW3980 | SPRING, PARKING LEVER RETURN | 1 |
| 28 | 53183GW3980 | PIN, PARKING LEVER PIVOT | 1 |
| 29 | 88110KRP901 | MIRROR ASSY., R. BACK | 1 |
| 30 | 88113KRP901 | CAP, LOCK NUT | 2 |
| 31 | 88120KRP901 | MIRROR ASSY., L. BACK | 1 |
| 32 | 90115KPL900 | SCREW, HANDLE LEVER PIVOT | 2 |
| 33 | 90304KPL900 | NUT, HEX., 5MM | 2 |
| 34 | 90310KPL900 | LOCK NUT, R. MIRROR (LEFT HAND THREAD) | 1 |
| 35 | 90311KPL900 | LOCK NUT, L. MIRROR | 1 |
| 36 | 934010602000 | BOLT-WASHER, 6X20 | 2 |
