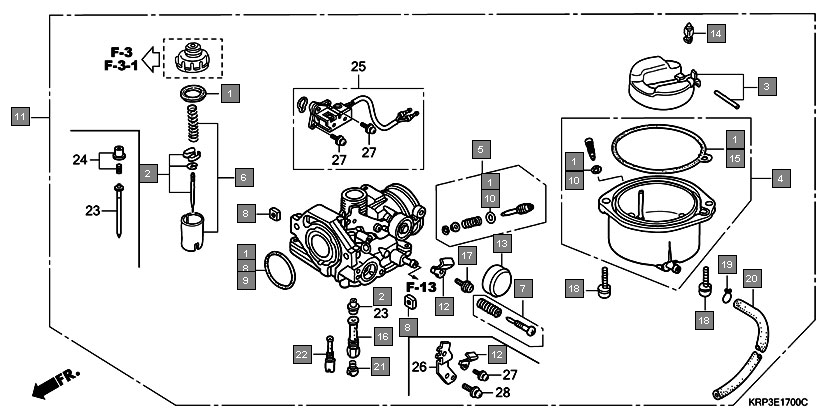

Scooters Dio SCV100F5 Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KPL901 GASKET SET 1
2 16012KPL901 NEEDLE SET, JET 1
3 16013KRB901 FLOAT SET 1
4 16015KPL901 CHAMBER SET, FLOAT 1
5 16016KPWH01 SCREW SET 1
6 16022KPL901 VALVE SET, THROTTLE 1
7 16028KPL901 SCREW SET 1
8 16041KPL901 NUT SET, SQUARE 1
9 16075KPL901 O-RING 1
10 16076KPL901 O-RING 1
11 16100KPL841 CARBURETOR ASSY.(PB5LD A) 1
12 16119KPL901 PLATE, STAY 1
13 16148KPL901 CAP, CHOKE DUST 1
14 16155KPL901 VALVE COMP., FLOAT 1
15 16163KPL901 GASKET, FLOAT CHAMBER 1
16 16165KPL901 HOLDER, NEEDLE JET 1
17 938920400818 SCREW-WASHER, 4X8 1
18 938920401418 SCREW-WASHER, 4X14 2
19 9500202659 CLIP, TUBE(B6.5) 1
20 950053528050 TUBE, 3.5X280(95005-35001-50M) 1
21 99101KPL0750 JET, MAIN, #75 1
22 99103KPL0380 JET, SLOW, #38 1
