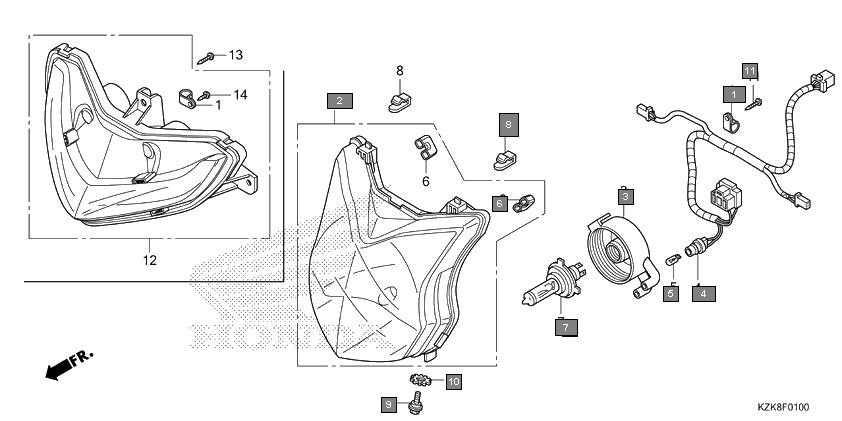

Scooters Dio SCV110FBH Frame Headlight(scv110fc/fd/ff/fh/fbc/fbh)
Ref.No. Part No. Description Oty
1 32930KVT901 CLIP B, HARNESS 1
2 33110KZK901 HEADLIGHT UNIT 1
3 33112KWS901 COVER, RUBBER 1
4 33120KZK901 SUB CORD, HEADLIGHT 1
5 33301KYJ901 BULB, WEDGE BASE(T10 12V 5W) 1
6 33706KWS901 TUBE 2
7 34901KSP910 BULB, HEADLIGHT(HS1)(12V 35/35W)(PHILIPS) 1
8 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
9 53209GAH000 CLIP, HEADLIGHT 2
10 90103KVH900 BOLT, ADJUSTER 2
11 90307GW3980 WASHER, LOCK, 6MM 2
12 9390134420 SCREW, TAPPING, 4X16 1
