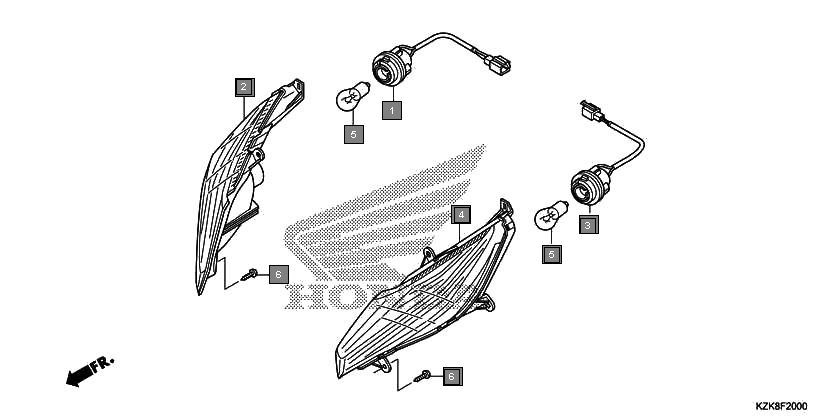

Scooters Dio SCV110FBH Frame Front winker
Ref.No. Part No. Description Oty
1 33405KZK901 SUB CORD, R. FR. WINKER 1
2 33410KZK901 LENS COMP., R. 1
3 33455KZK901 SUB CORD, L. FR. WINKER 1
4 33460KZK901 LENS COMP., L. 1
5 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
6 9390324310 SCREW, TAPPING, 4X12 6
