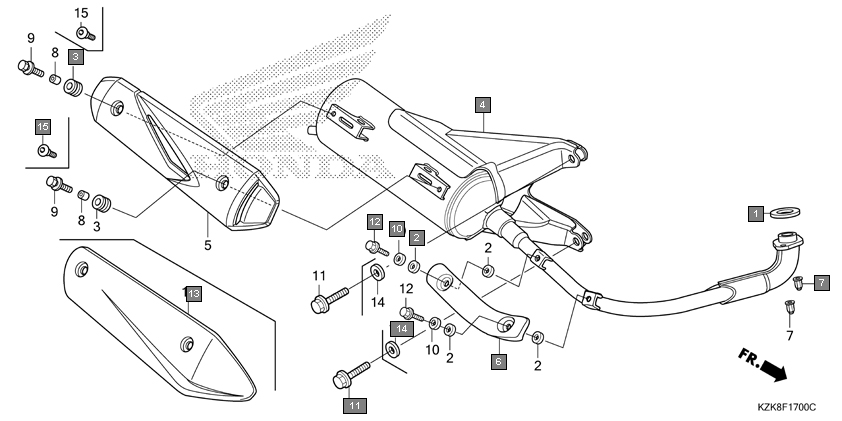

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18292GY1610 | GASKET, EX. PIPE | 1 |
2 | 18292KTP900 | PACKING, PROTECTOR | 4 |
3 | 18293KVT900 | RUBBER, PROTECTOR PACKING | 2 |
4 | 18300KZKF00 | MUFFLER COMP., EX. | 1 |
5 | 18300KVTD00 | MUFFLER COMP., EX. | 1 |
6 | 18318KZK900 | PROTECTOR, MUFFLER | 1 |
7 | 18319KZKF00 | PROTECTOR, EX. PIPE | 1 |
8 | 90304MJ0920 | NUT, CAP, 7MM | 2 |
9 | 90312KVT900 | COLLAR, 9.5X10 | 2 |
10 | 934040602007 | BOLT-WASHER, 6X20 | 2 |
11 | 18319KVT940 | PROTECTOR, EX. PIPE | 1 |
12 | 9410106700 | WASHER, PLAIN, 6MM | 2 |
13 | 958011004007 | BOLT, FLANGE, 10X40 | 2 |
14 | 960010601007 | BOLT, FLANGE, 6X10 | 2 |
