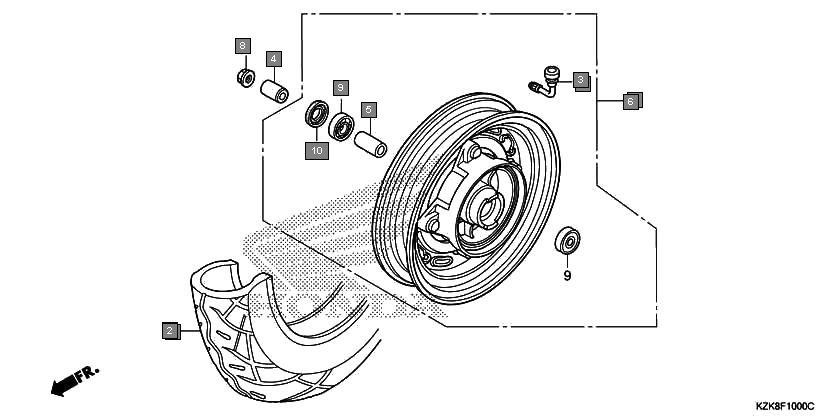

Scooters Dio SCV110FBH Frame Front wheel
Ref.No. Part No. Description Oty
1 42711KZK901 TIRE(MRF)(90/100-10M/C 53J) 1
2 42711KZK902 TIRE(TVS)(90/100-10M/C 53J) 1
3 42711KWPF01 TIRE(CEAT)(90/100-10 53J) 1
4 42753KWPE01 VALVE, RIM(TRITON) 1
5 42753KZK901 VALVE, RIM(TRITON) 1
6 44311KPL900 COLLAR, FR. WHEEL SIDE 1
7 44620KPL900 COLLAR, FR. AXLE DISTANCE 1
8 44650KZKF00 WHEEL SUB ASSY., FR. 1
9 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
10 90912KPL900 BEARING, RADIAL BALL, 6201U 2
11 91251KWP901 DUST SEAL, 20X32X5 1
12 44650KZKD00 WHEEL SUB ASSY., FR. 1
