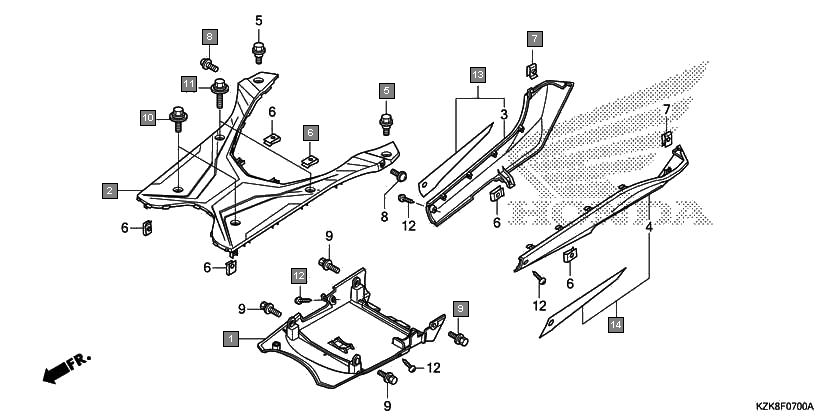

Scooters Dio SCV110FBH Frame Floor step
Ref.No. Part No. Description Oty
1 50621KZK900 COVER, UNDER 1
2 64310KZK900ZA STEP, FLOOR *NH1* BLACK 1
3 64310KZK900ZB STEP, FLOOR *NH303M*. MAT AXIS GRAY METALLIC 1
4 64320KZK900ZB COVER, R. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC 1
5 64330KZK900ZB COVER, L. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC 1
6 90111KWP900 BOLT, INNER COVER 2
7 90344KRP900 NUT, CLIP, 5MM 6
8 90677KANT00 NUT, CLIP, 5MM 2
9 91509GE2760 SCREW, PAN, 5X11.5 2
10 934040601607 BOLT-WASHER, 6X16 4
11 934040602507 BOLT-WASHER, 6X25 2
12 934040603207 BOLT-WASHER, 6X32 2
13 9390325380 SCREW, TAPPING, 5X16 4
