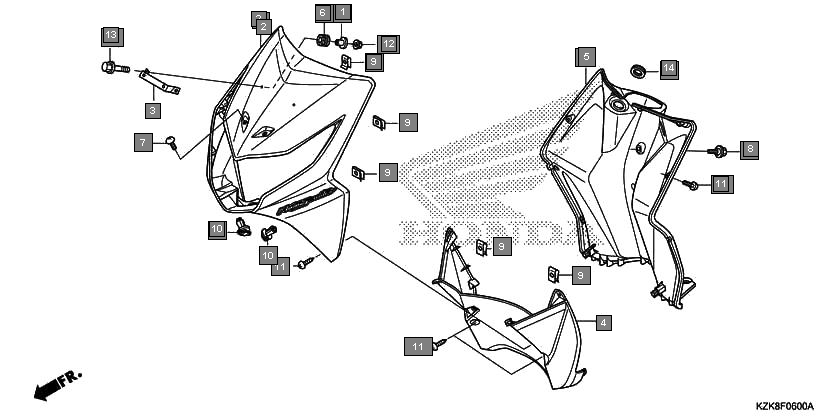

Scooters Dio SCV110FBH Frame Front cover(1)
Ref.No. Part No. Description Oty
1 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
2 61104428000 COLLAR, FR. FENDER 2
3 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
4 64200KZKG10ZA COVER SET, FR.(WL) *TYPE1* 1
5 64200KZKG10ZB *NH303M* MAT AXIS GRAY METALLIC 1
6 64303KZK900 STAY, FR. NUMBER PLATE 1
7 64305KZK900ZB COVER, FR. LOWER *NH303M* MAT AXIS GRAY METALLIC 1
8 81131KZK900ZA COVER, INNER *NH1* BLACK 1
9 84703425000 RUBBER, TAILLIGHT MOUNTING 2
10 90107KTL740 SCREW, COWL SETTING(A) 2
11 90111KWP900 BOLT, INNER COVER 1
12 90344KRP900 NUT, CLIP, 5MM 8
13 90683KPPN00 CLIP, TRIM 2
14 9390325380 SCREW, TAPPING, 5X16 12
15 9405006080 NUT, FLANGE, 6MM 2
16 957010602500 BOLT, FLANGE, 6X25 2
17 81132KZK900 RUBBER, KEY CYLINDER 1
18 90683GAZ003 CLIP, TRIM 2
19 957010602500 BOLT, FLANGE, 6X25 1
