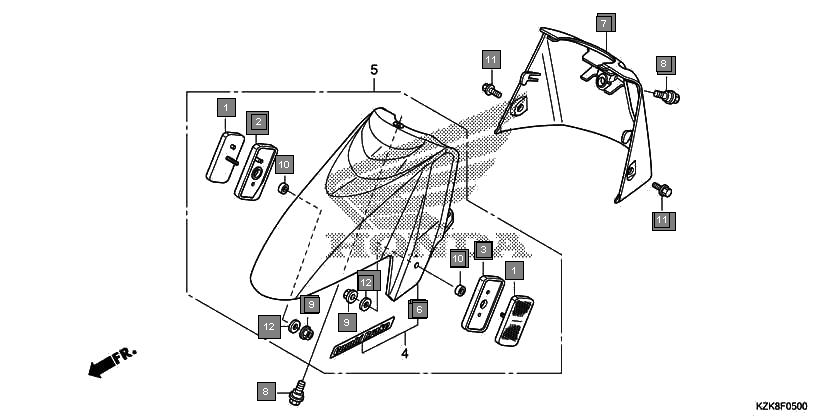

Scooters Dio SCV110FBH Frame Front fender
Ref.No. Part No. Description Oty
1 33740KZK951 REFLECTOR, FR. SIDE REFLEX 2
2 33762KZK950 MOUNT, R. SIDE REFLECTOR 1
3 33862KZK950 MOUNT, L. SIDE REFLECTOR 1
4 61000KZKD00ZB FENDER SET, FR.(WL) *TYPE3* 1
5 61000KZKD10ZB FENDER SET, FR.(WL) *TYPE3* 1
6 61110KZK900ZA FENDER B, FR. *NH1* BLACK 1
7 90111KPL900 BOLT, INNER COVER 2
8 90301KWN901 NUT, U, 5MM 2
9 90312KZK950 COLLAR, 9.5X5.5 2
10 934040601207 BOLT-WASHER, 6X12 2
11 9410305800 WASHER, PLAIN, 5MM 2
