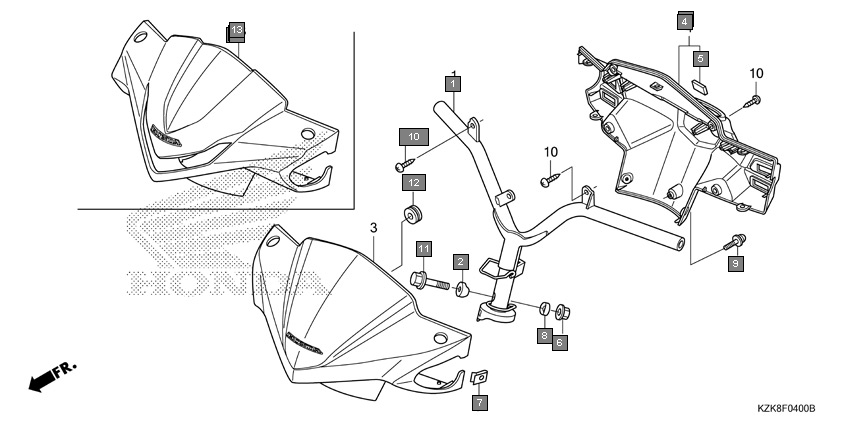

Scooters Dio SCV110FBH Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KZK910 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53200KZKD00ZB COVER SET, FR. HANDLE(WL) *TYPE3* 1
4 53250KZK900ZA COVER COMP., RR. HANDLE *NH1* BLACK 1
5 86150KWS601 EMBLEM, PRODUCT(SJS) 1
6 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
7 90344KTE910 NUT, CLIP, 4MM 2
8 90502KWP900 COLLAR B, HANDLE SETTING 1
9 938910501607 SCREW-WASHER, 5X16 1
10 9390334480 SCREW, TAPPING, 4X16 8
11 958011005508 BOLT, FLANGE, 10X55 1
12 64216GJ2730 RUBBER, SCREEN SETTING 1
