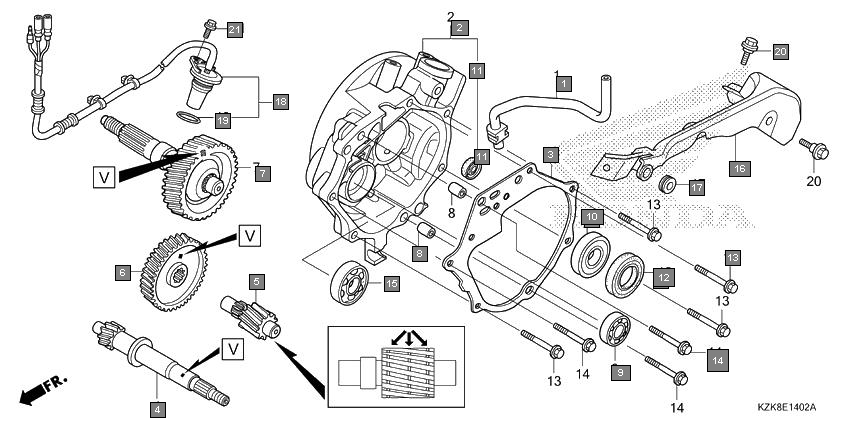

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11220GCC000 | TUBE, MISSION BREATHER | 1 |
| 2 | 21200KZK900 | CASE COMP., MISSION | 1 |
| 3 | 21395KWP901 | GASKET, TRANSMISSION CASE | 1 |
| 4 | 23411KWPF20 | DRIVESHAFT(19T) | 1 |
| 5 | 23421KWPF20 | COUNTERSHAFT(13T) | 1 |
| 6 | 23422KWPF20 | GEAR, COUNTER(51T) | 1 |
| 7 | 23430KWPF20 | GEAR COMP., FINAL(49T) | 1 |
| 8 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 2 |
| 9 | 961006201000 | BEARING, RADIAL BALL, 6201 | 1 |
| 10 | 91006KWPG32 | BEARING, RADIAL BALL, 6201 (FAG) | 1 |
| 11 | 91006KWP901 | BEARING, RADIAL BALL, 6201(NSK) | 1 |
| 12 | 91006KWPG31 | BEARING, RADIAL BALL, 6201 (NBC) | 1 |
| 13 | 91008KWPD02 | BEARING, RADIAL BALL, 6004UU(FAG) | 1 |
| 14 | 91008KWPD03 | BEARING, RADIAL BALL, 6004UU(NEI LTD) | 1 |
| 15 | 91008KWPD01 | BEARING, RADIAL BALL, 6004UU(NSK) | 1 |
| 16 | 91203KPL901 | OIL SEAL, 14X20X3.2 | 1 |
| 17 | 91204KWPD01 | OIL SEAL, 14X20X3.2(FENNER) | 1 |
| 18 | 91225KWPD02 | OIL SEAL, 27X42X7(FENNER) | 1 |
| 19 | 91225KWPD01 | OIL SEAL, 27X42X7 | 1 |
| 20 | 957010603000 | BOLT, FLANGE, 6X30 | 4 |
| 21 | 957010604000 | BOLT, FLANGE, 6X40 | 3 |
| 22 | 961006301000 | BEARING, RADIAL BALL, 6301 | 1 |
