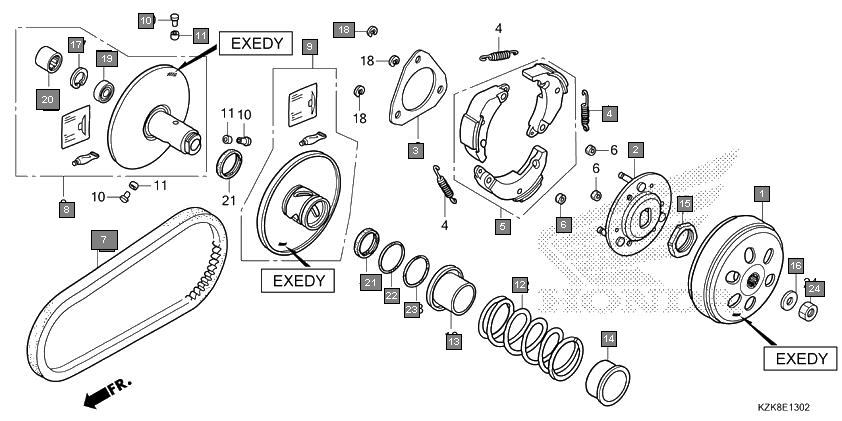

Scooters Dio SCV110FBH Engine Driven face(scv110fd/ff/fh/fk/fbh/fbk)(exedy)
Ref.No. Part No. Description Oty
1 22100KWPD02 OUTER COMP., CLUTCH(EXEDY) 1
2 22350KWPD02 PLATE COMP., DRIVE 1
3 22361K27V02 PLATE, CLUTCH SIDE(EXEDY) 1
4 22401KWPD02 SPRING, CLUTCH(8KGF) 3
5 22534KWPD00 WEIGHT SET, CLUTCH 1
6 22804148000 RUBBER, CLUTCH DAMPER 3
7 23100KWPD01 BELT, DRIVE(BANDO) 1
8 23100KWPD02 BELT, DRIVE(GATES) 1
9 23204KWPD00 FACE SET, DRIVEN(EXEDY) 1
10 23223KWPD00 FACE SET, MOVABLE DRIVEN(EXEDY) 1
11 23225KSY900 PIN, ROLLER GUIDE 3
12 23226K27V02 ROLLER, GUIDE 3
13 23233KWPD02 SPRING, DRIVEN FACE 1
14 23237KWPD02 COLLAR, SEAL 1
15 23238KWPD02 COLLAR, SPRING 1
16 90202KN7670 NUT, SPECIAL, 28MM 1
17 90441GY6940 WASHER, 12.2X29X2.5 1
18 90464K27V02 CIRCLIP, INTERNAL, 28MM(EXEDY) 1
19 90605166720 CIRCLIP, 7MM 3
20 91009KVY961 BEARING, RADIAL BALL, 6902U(NSK) 1
21 91002GA7701 BEARING, RADIAL BALL, 6902U (NTN) 1
22 91109KVY902 BEARING, NEEDLE, 20X29X1(SCHAEFFLER) 1
23 91001KCW003 BEARING, NEEDLE, 20X29X18(NTN) 1
24 91211K24901 SEAL, DRIVEN FACE, 34X39X3 2
25 91351642000 O-RING, PINION CAP 1
26 91351GR1000 O-RING, 38.5X2 1
27 9403012200 NUT, HEX., 12MM 1
