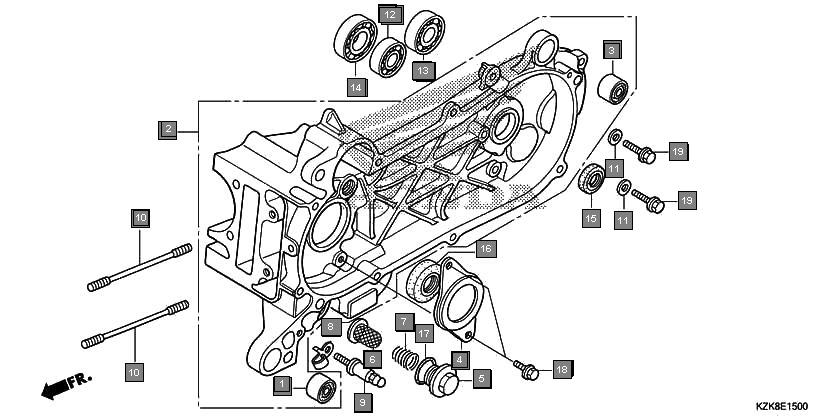

Scooters Dio SCV110FBH Engine Left crankcase
Ref.No. Part No. Description Oty
1 11103KWP900 BUSH, ENGINE HANGER RUBBER 1
2 11200KWPD01 CRANKCASE COMP., L. 1
3 11203KWPD00 BUSH, RR. CUSHION UNDER RUBBER 1
4 11204KWPD00 PLATE, OIL SEAL STOPPER 1
5 12361KPL900 CAP, TAPPET ADJUSTING HOLE 1
6 15421KPL900 SCREEN, OIL FILTER 1
7 15426KCW880 SPRING, OIL FILTER SCREEN 1
8 16236KZK900 CLAMPER, OVER FLOW 1
9 90008KPL900 BOLT, MAIN STAND SPRING 1
10 90032KWPD00 BOLT B, STUD, 7X198 2
11 90474333000 WASHER, SEALING, 8MM 2
12 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
13 961006201000 BEARING, RADIAL BALL, 6201 1
14 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
15 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
16 961006202000 BEARING, RADIAL BALL, 6202 1
17 91007KWPG31 BEARING, RADIAL BALL, 6202 (NBC) 1
18 91007KWPG32 BEARING, RADIAL BALL, 6202 (FAG) 1
19 91007KWP901 BEARING, RADIAL BALL, 6202(NSK) 1
20 91104KCW880 BEARING, RADIAL BALL, 6204 1
21 91203KWPD01 OIL SEAL, 20X32X6.2(ARS) 1
22 91202KWPD01 OIL SEAL, 20.8X53X6(ARS) 1
23 91302001020 O-RING, 30.8MM 1
24 957010601600 BOLT, FLANGE, 6X16 2
25 957010801200 BOLT, FLANGE, 8X12 2
26 957020601600 BOLT, FLANGE, 6X16 2
27 957020801200 BOLT, FLANGE, 8X12 2
