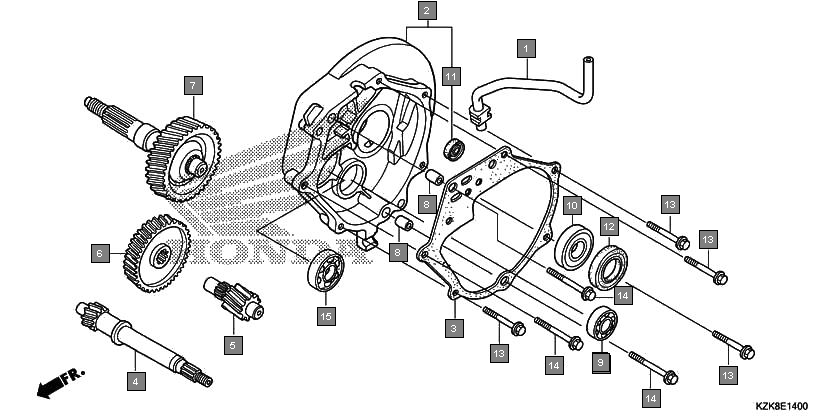

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 23421KWPF20 | COUNTERSHAFT(13T) | 1 |
2 | 23422KWPD00 | GEAR, COUNTER(51T) | 1 |
3 | 23422KWPF00 | GEAR, COUNTER(51T) | 1 |
4 | 23430KWP901 | GEAR COMP., FINAL(49T) | 1 |
5 | 23430KWPF00 | GEAR COMP., FINAL(49T) | 1 |
6 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 2 |
7 | 91006KWP901 | BEARING, RADIAL BALL, 6201(NSK) | 1 |
8 | 961006201000 | BEARING, RADIAL BALL, 6201 | 1 |
9 | 91008KWPD01 | BEARING, RADIAL BALL, 6004UU(NSK) | 1 |
10 | 91008KWPD02 | BEARING, RADIAL BALL, 6004UU(FAG) | 1 |
11 | 91008KWPD03 | BEARING, RADIAL BALL, 6004UU(NEI LTD) | 1 |
12 | 91203KPL901 | OIL SEAL, 14X20X3.2 | 1 |
13 | 91225KWPD01 | OIL SEAL, 27X42X7 | 1 |
14 | 957010603000 | BOLT, FLANGE, 6X30 | 4 |
15 | 957010604000 | BOLT, FLANGE, 6X40 | 3 |
16 | 961006301000 | BEARING, RADIAL BALL, 6301 | 1 |
