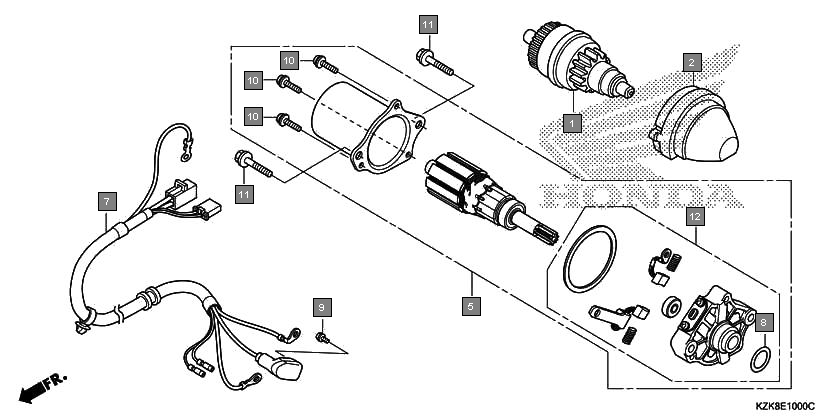

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28120KVB901 | PINION ASSY., STARTER(14/40T) | 1 |
2 | 28150KPL900 | HOLDER COMP., STARTER PINION | 1 |
3 | 31210KZK901 | MOTOR UNIT, STARTER(MITSUBA) | 1 |
4 | 32105KZKF01 | HARNESS COMP., STARTING MOTOR | 1 |
5 | 91309KEE630 | O-RING | 1 |
6 | 938920400608 | SCREW-WASHER, 4X6 | 1 |
7 | 938920501608 | SCREW-WASHER, 5X16 | 3 |
8 | 960010603500 | BOLT, FLANGE, 6X35 | 2 |
9 | 31214KZK901 | BRACKET COMP., FR. | 1 |
