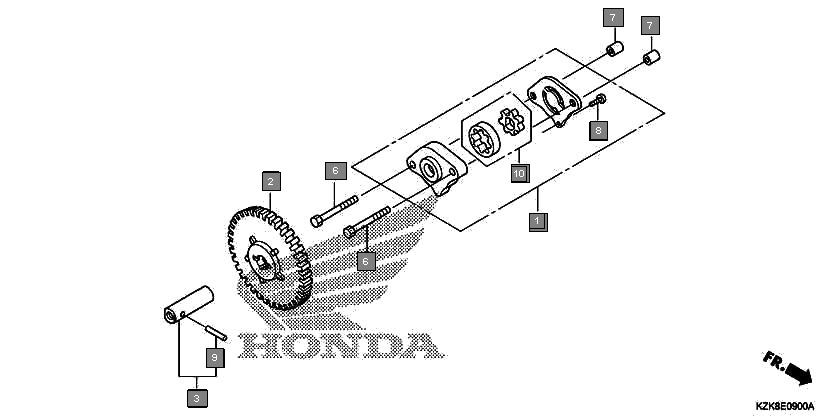

Scooters Dio SCV110FBH Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KTP900 PUMP ASSY., OIL 1
2 15133KVY900 GEAR, OIL PUMP DRIVEN(39T) 1
3 15135KWPF00 SHAFT COMP., OIL PUMP 1
4 90001KPL900 BOLT, HEX., 6X30 2
5 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
6 9390134120 SCREW, TAPPING, 4X8 1
7 9622030168 ROLLER, 3X16.8 1
8 15021436000 ROTOR SET, OIL PUMP 1
