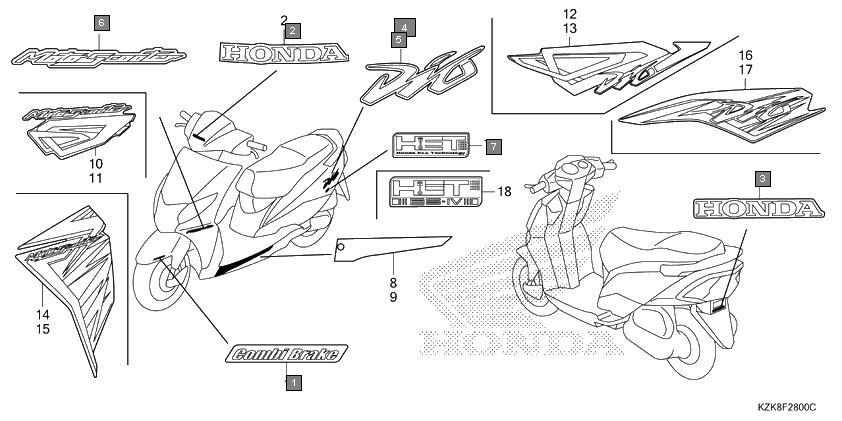

Scooters Dio SCV110FH Frame Mark(scv110fc/fd/ff/fh/fbc/fbh)
Ref.No. Part No. Description Oty
1 86611KZK910ZA MARK *TYPE2* 1
2 61106KWP910ZB MARK(COMBI BRAKE)*TYPE2* 1
3 61106KWP910ZA MARK(COMBI BRAKE)*TYPE1* Black + Red 1
4 86101KZKD20ZC MARK, HONDA(75MM) *TYPE1* 1
5 86101KZK900ZC MARK, HONDA(75MM) *TYPE3* 1
6 86101KZK900ZE MARK, HONDA(75MM) *TYPE1* 1
7 86101KZKD20ZB MARK, HONDA(75MM) *TYPE2* 1
8 86101KZKD20ZA MARK, HONDA(75MM) *TYPE3* 1
9 86102KZK900ZA MARK, HONDA *TYPE1* 1
10 86532KZK900 EMBLEM, R. BODY COVER 1
11 86632KZK900 EMBLEM, L. BODY COVER 1
12 86833KWPD00ZA MARK, HET *TYPE1* 1
13 86641KZKD21ZC STRIPE, R. FLOOR SIDE COVER *TYPE4*...................... 1
14 86641KZKD21ZD STRIPE, R. FLOOR SIDE COVER 1
15 86641KZKF40ZD STRIPE, R. FLOOR SIDE COVER *TYPE1* 1
16 86641KZKF40ZB STRIPE, R. FLOOR SIDE COVER *TYPE3* 1
17 86641KZKF40ZC STRIPE, R. FLOOR SIDE COVER *TYPE2* 1
18 86641KZKF40ZA STRIPE, R. FLOOR SIDE COVER *TYPE4* 1
19 86641KZKD21ZA STRIPE, R. FLOOR SIDE COVER 1
20 86641KZKD21ZB STRIPE, R. FLOOR SIDE COVER *TYPE4*...................... 1
21 86642KZKF40ZC STRIPE, L. FLOOR SIDE COVER *TYPE2* 1
22 86642KZKD21ZA STRIPE, L. FLOOR SIDE COVER 1
23 86642KZKD21ZC STRIPE, L. FLOOR SIDE COVER *TYPE3*...................... 1
24 86642KZKF40ZA STRIPE, L. FLOOR SIDE COVER *TYPE4* 1
25 86642KZKD21ZD STRIPE, L. FLOOR SIDE COVER *TYPE1*...................... 1
26 86642KZKF40ZD STRIPE, L. FLOOR SIDE COVER *TYPE1* 1
27 86642KZKD21ZB STRIPE, L. FLOOR SIDE COVER *TYPE4*...................... 1
28 86642KZKF40ZB STRIPE, L. FLOOR SIDE COVER *TYPE3* 1
29 86643KZKF40ZD STRIPE, R. FR. COVER *TYPE1* 1
30 86643KZKF40ZA STRIPE, R. FR. COVER *TYPE4* 1
31 86643KZKF40ZB STRIPE, R. FR. COVER *TYPE3* 1
32 86643KZKF40ZC STRIPE, R. FR. COVER *TYPE2* 1
33 86644KZKF40ZD STRIPE, L. FR. COVER *TYPE1* 1
34 86644KZKF40ZB STRIPE, L. FR. COVER *TYPE3* 1
35 86644KZKF40ZC STRIPE, L. FR. COVER *TYPE2* 1
36 86644KZKF40ZA STRIPE, L. FR. COVER *TYPE4* 1
37 86831KZKF40ZC STRIPE, R. BODY COVER *TYPE2* 1
38 86831KZKF40ZD STRIPE, R. BODY COVER *TYPE1* 1
39 86831KZKF40ZA STRIPE, R. BODY COVER *TYPE4* 1
40 86831KZKF40ZB STRIPE, R. BODY COVER *TYPE3* 1
41 86832KZKF40ZC STRIPE, L. BODY COVER *TYPE2* 1
42 86832KZKF40ZB STRIPE, L. BODY COVER *TYPE3* 1
43 86832KZKF40ZD STRIPE, L. BODY COVER *TYPE2* 1
44 86832KZKF40ZA STRIPE, L. BODY COVER *TYPE4* 1
45 86643KZKD21ZC STRIPE, R. FR. COVER *TYPE4*...................... 1
46 86643KZKD21ZA STRIPE, R. FR. COVER *TYPE4*...................... 1
47 86643KZKD21ZB STRIPE, R. FR. COVER *TYPE4*...................... 1
48 86643KZKD21ZD STRIPE, R. FR. COVER *TYPE1*...................... 1
49 86644KZKD21ZC STRIPE, L. FR. COVER *TYPE4*...................... 1
50 86644KZKD21ZA STRIPE, L. FR. COVER *TYPE4*...................... 1
51 86644KZKD21ZD STRIPE, L. FR. COVER *TYPE1*...................... 1
52 86644KZKD21ZB STRIPE, L. FR. COVER *TYPE3*...................... 1
53 86831KZKD21ZD STRIPE, R. BODY COVER *TYPE1*...................... 1
54 86831KZKD21ZB STRIPE, R. BODY COVER *TYPE4*...................... 1
55 86831KZKD21ZA STRIPE, R. BODY COVER *TYPE4*...................... 1
56 86831KZKD21ZC STRIPE, R. BODY COVER *TYPE4*...................... 1
57 86832KZKD21ZB STRIPE, L. BODY COVER *TYPE3*...................... 1
58 86832KZKD21ZC STRIPE, L. BODY COVER *TYPE2*...................... 1
59 86832KZKD21ZD STRIPE, L. BODY COVER *TYPE1*...................... 1
60 86832KZKD21ZA STRIPE, L. BODY COVER *TYPE4*...................... 1
61 86833K43900ZA MARK, HET BS 4 *TYPE1* (R SIDE ONLY) 1
