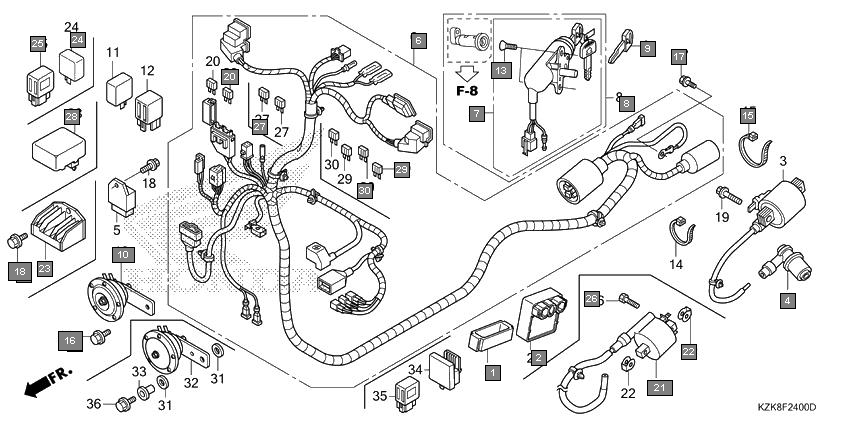

Scooters Dio SCV110FH Frame Wire harness(scv110fc/fd/ff/fh/fbc/fbh)
Ref.No. Part No. Description Oty
1 30700KWP901 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
2 32100KZKD20 HARNESS, WIRE 1
3 32100KZKF00 HARNESS, WIRE 1
4 35012KZKD00 SWITCH ASSY. SET, COMBINATION & LOCK 1
5 35014KZKD00 KEY & SCREW SET 1
6 35121KPL841 KEY, BLANK 1
7 38110KZK901 HORN COMP. 1
8 90164KEE630 SCREW, FLAT, 6X12 2
9 90657KRP901 CABLE, TIE(LONG) 1
10 957010601200 BOLT, FLANGE, 6X12 1
11 957010601208 BOLT, FLANGE, 6X12 1
12 957010601608 BOLT, FLANGE, 6X16 1
13 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
14 30520GFM900 SPACER, IGNITION COIL 2
15 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
16 38301KWPD21 RELAY COMP., WINKER(STAR ENGINEERS) 1
17 92101060204J BOLT, HEX., 6X20 2
18 30410KZKD21 SPARK UNIT COMP.(DENSO) 1
19 30410KZKF01 C.D.I. UNIT 1
20 9820031000 FUSE, BLADE(10A) 2
21 9820031500 FUSE, BLADE(15A) 2
22 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
23 38110KZKD21 HORN COMP.(BLOWELL) 1
24 38117KYJT00 COLLAR, HORN SETTING 1
25 38301KVTG01 RELAY COMP., WINKER 1
26 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
27 957010602000 BOLT, FLANGE, 6X20 1
