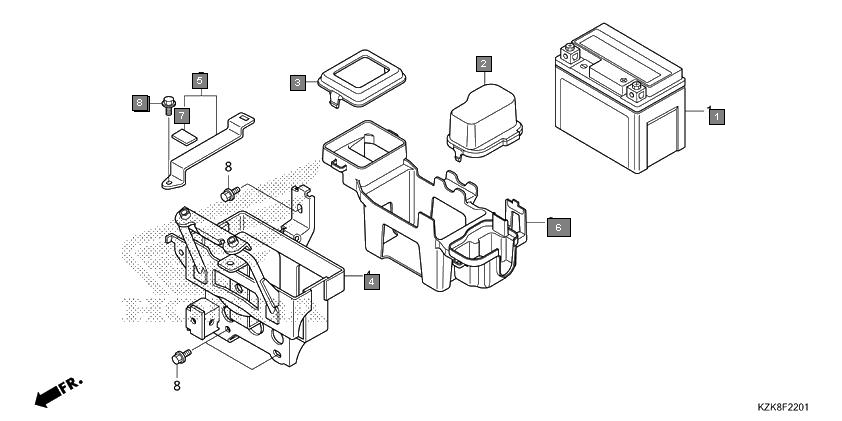

Scooters Dio SCV110FH Frame Battery(scv110ff-id/fh/fk/fbh/fbk)
Ref.No. Part No. Description Oty
1 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
2 50325KWPD01 BOX, RELAY UPPER 1
3 50325KZKF00 COVER, C.D.I. UNIT 1
4 50330KZKF00 TRAY COMP., BATTERY 1
5 50330KZKD20 TRAY COMP., BATTERY 1
6 50341KWPD00 BAND COMP., BATTERY 1
7 50341KZKD20 BAND COMP., BATTERY 1
8 50381KZKD20 CASE, BATTERY 1
9 50381KZKF00 CASE, BATTERY 1
10 50386KWPD00 RUBBER A, BATTERY 1
11 957010601208 BOLT, FLANGE, 6X12 4
