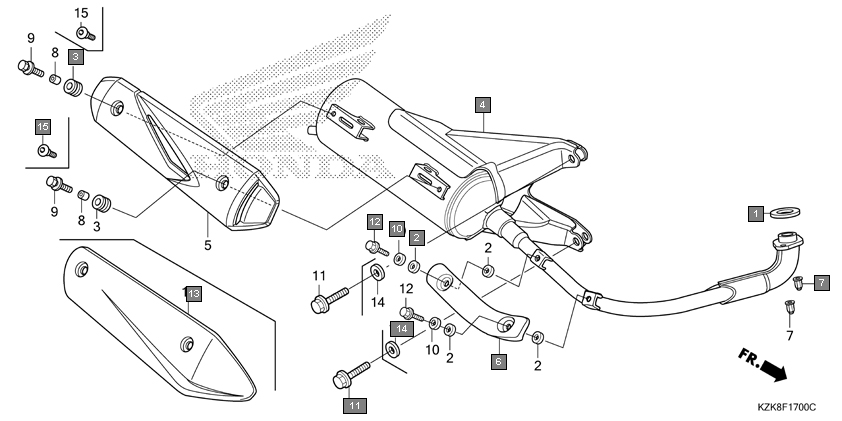

Scooters Dio SCV110FH Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 4
3 18293KVT900 RUBBER, PROTECTOR PACKING 2
4 18300KZKF00 MUFFLER COMP., EX. 1
5 18300KZKD20 MUFFLER COMP., EX. 1
6 18300KVTD00 MUFFLER COMP., EX. 1
7 18318KZK900 PROTECTOR, MUFFLER 1
8 18319KZKF00 PROTECTOR, EX. PIPE 1
9 90304MJ0920 NUT, CAP, 7MM 2
10 90312KVT900 COLLAR, 9.5X10 2
11 18319KVT940 PROTECTOR, EX. PIPE 1
12 934040602007 BOLT-WASHER, 6X20 2
13 9410106700 WASHER, PLAIN, 6MM 2
14 958011004007 BOLT, FLANGE, 10X40 2
15 960010601007 BOLT, FLANGE, 6X10 2
16 18318KVTG00 PROTECTOR, MUFFLER 1
17 90510KVTG00 WASHER, PLAIN, 10MM 2
18 90510KVTG00 WASHER, PLAIN, 10MM 1
