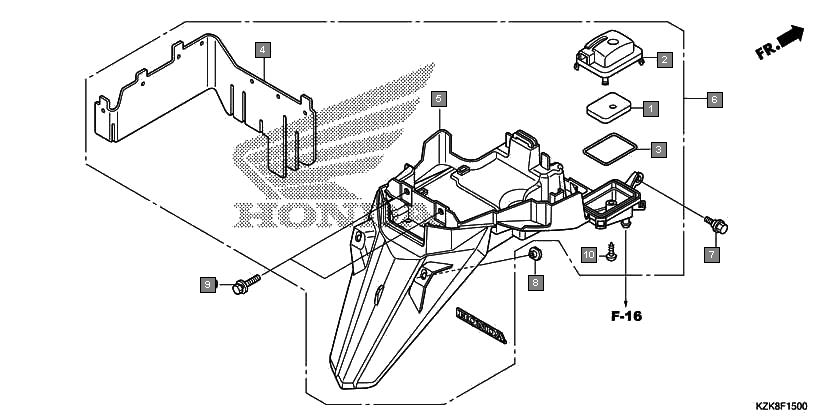

Scooters Dio SCV110FH Frame Rear fender
Ref.No. Part No. Description Oty
1 18805KPL900 ELEMENT, SUB AIR CLEANER 1
2 18807KPL900 COVER, SUB AIR CLEANER 1
3 18812KPL900 SEAL, SUB AIR CLEANER 1
4 80104KPL900 PLATE, RR. FENDER SPLASH GUARD 1
5 80105KZK900 FENDER, RR. 1
6 80120KZK900ZA FENDER SET, RR.(WL) *TYPE1* 1
7 90111KWP900 BOLT, INNER COVER 1
8 90311KTE910 NUT, RR. FENDER 2
9 934040601208 BOLT-WASHER, 6X12 2
10 9390325480 SCREW, TAPPING, 5X20 1
