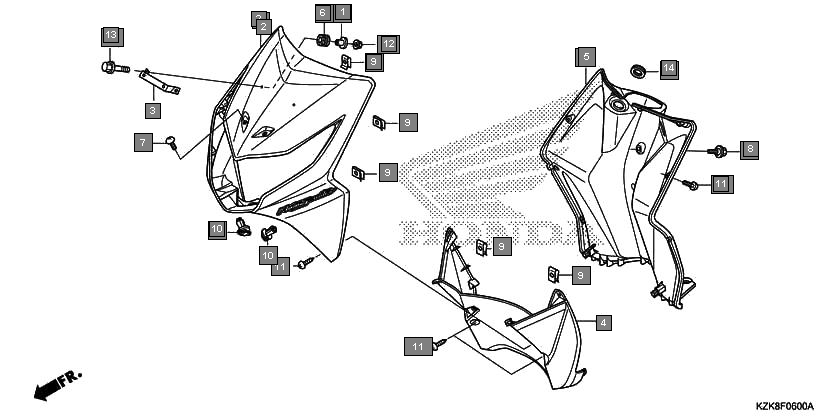

Scooters Dio SCV110FH Frame Front cover(1)
Ref.No. Part No. Description Oty
1 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
2 61104428010 COLLAR, FR. FENDER(WHITE)..... (FOR RR.) 2
3 61104428000 COLLAR, FR. FENDER 2
4 64200KZKF40ZB COVER SET, FR.(WL) *TYPE3* 1
5 64200KZKF40ZM COVER SET, FR.(WL) *TYPE1 2* 1
6 64200KZKF40ZL COVER SET, FR.(WL) *TYPE2 2* 1
7 64200KZKF40ZJ COVER SET, FR.(WL) *TYPE4 2* 1
8 64200KZKF40ZD COVER SET, FR.(WL) *TYPE1* 1
9 64200KZKF40ZK COVER SET, FR.(WL) *TYPE3 2* 1
10 64200KZKF40ZC COVER SET, FR.(WL) *TYPE2* 1
11 64200KZKF40ZA COVER SET, FR.(WL) *TYPE4* 1
12 64303KZK900 STAY, FR. NUMBER PLATE 1
13 64305KZK900ZG COVER, FR. LOWER *GY142C* CANDY PALM GREEN 1
14 64305KZK900ZE COVER, FR. LOWER *R321* SPORTS RED 1
15 64305KZK900ZJ COVER, FR. LOWER *B221C* CANDY JAZZY BLUE 1
16 64305KZK900ZF COVER, FR. LOWER *NH1* BLACK 1
17 81131KZK900ZA COVER, INNER *NH1* BLACK 1
18 84703425000 RUBBER, TAILLIGHT MOUNTING 2
19 90107KTL740 SCREW, COWL SETTING(A) 2
20 90111KWP900 BOLT, INNER COVER 1
21 64200KZKD20ZD COVER SET, FR.(WL) *TYPE1* 1
22 90344KRP900 NUT, CLIP, 5MM 8
23 90683KPPN00 CLIP, TRIM 2
24 9390325380 SCREW, TAPPING, 5X16 12
25 9405006080 NUT, FLANGE, 6MM 2
26 957010602500 BOLT, FLANGE, 6X25 2
27 81132KZK900 RUBBER, KEY CYLINDER 1
28 90683GAZ003 CLIP, TRIM 2
29 957010602500 BOLT, FLANGE, 6X25 1
