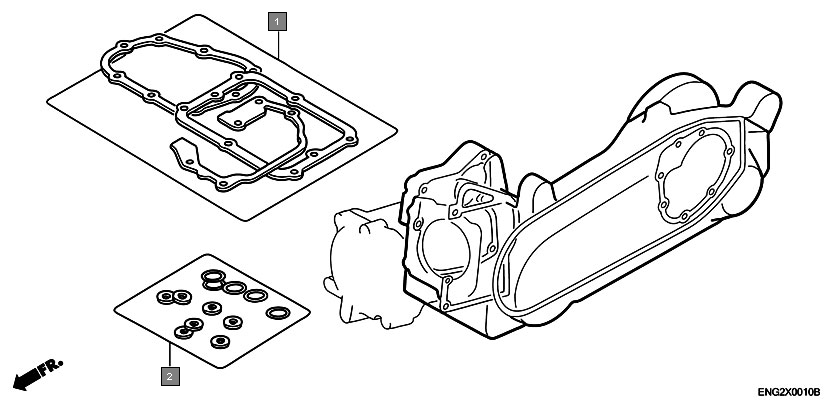

Scooters Dio SCV100F3 Engine Gasket kit b
Ref.No. Part No. Description Oty
1 06115KRP980 GASKET SHEET KIT B 1
2 11192KRP980 GASKET, CRANKCASE 1
3 11395KRP980 GASKET, L. COVER 1
4 21395KRP980 GASKET, TRANSMISSION CASE 1
5 06116KPL901 WASHER O-RING KIT B 1
6 90474333000 WASHER, SEALING, 8MM 2
7 91302001020 O-RING, 30.8MM 1
8 91307035000 O-RING, 18X3 1
9 91307639000 O-RING, 64X2 1
10 91309KPL901 O-RING 1
11 91351642000 O-RING, PINION CAP 1
12 91351GR1000 O-RING, 38.5X2 1
13 9410912000 WASHER, DRAIN PLUG, 12MM 1
